- The results are automatically loaded in.

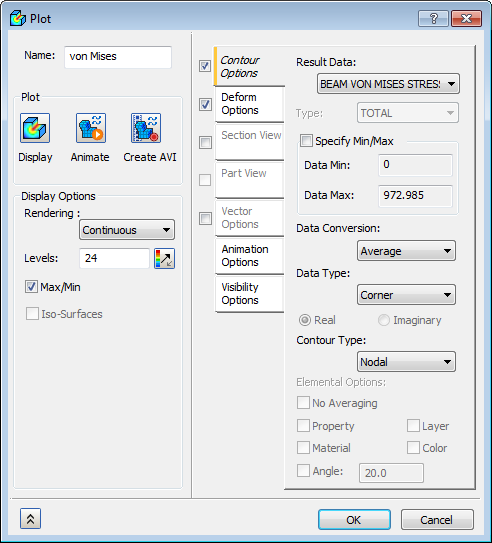

- Right-click on von Misses under Subcase 1 and choose Edit.
- Select
BEAM VON MISES for the
Results Data under
Contour Options.
- Make sure Deform Options and Contour Options are selected.
- Click the

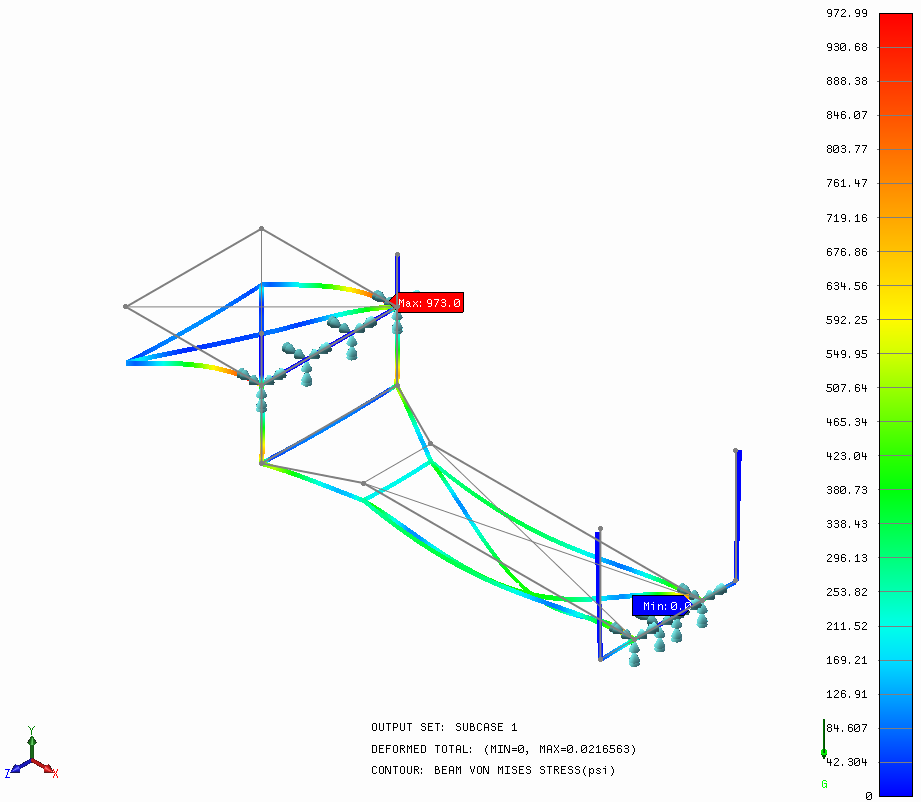

Display button to plot the contour.
This concludes Linear Static Analysis of a Trailer Frame Using Bar and Beam Elements.
The following summarizes the main topics covered:
- Running an analysis of a bar/beam structure.
- Create line element physical properties using Structural Member.
- Using a gravity load.
- Plotting a beam diagram.
