- Right-click on
Loads under
Subcase 1 and choose
New.
- Change the
Name to
Pressure.
- Change the
Type drop-down to
Pressure. Type
-1 for
Magnitude under
Load Definition.
- Be sure that
Subcase 1 is selected in the
Subcases list. Do not select Subcase 2 because it is for the eigenvalue analysis.
- Select all the surfaces in the model, either individually, or by using a box pick method.

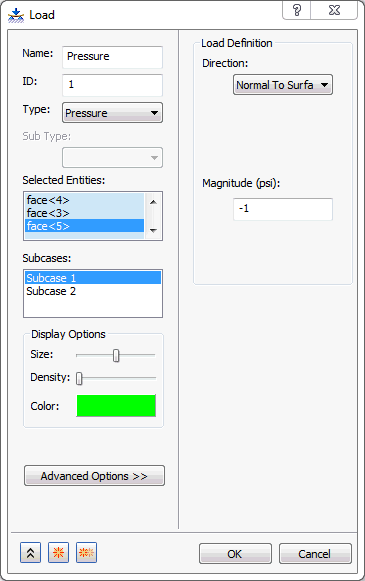

- The
Load dialog should look as shown below.
- Right-click on
Subcase 1, select
Rename and type in
Initial Stress Case.
- Now, right-click on
Subcase 2, select
Rename and type in
Linear Buckling Case.

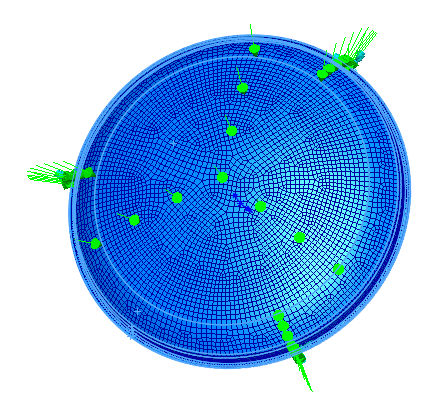

- Click
OK. The model should look as shown below.

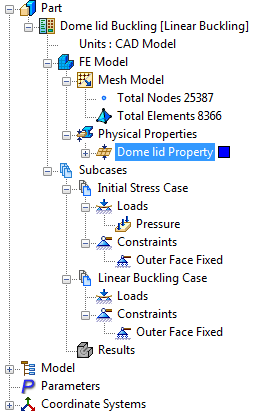

- Once finished, the tree view should look as shown below.
