SPC Summation

SPC Summation allows you to do single point constraint (SPC) force and moment summation if single point constraint output is requested.

• Type: Force and Moment options are available for single point constraint to calculate the reaction forces and moment respectively.
• Selected Entities: You can select Edges, Vertices, and Faces to sum single point constraint forces about.
• Subcase: This allows you to pick a subcase to obtain force summation.

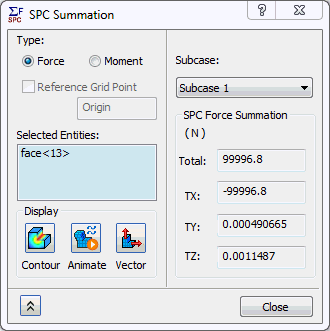

• SPC Force Summation: Gives you the TOTAL, TX, TY, and TZ SPC force summation on the selected entity when type is Force.

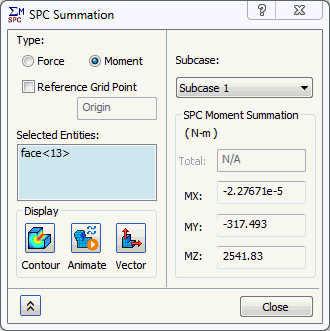

• SPC Moment Summation: Gives you the option to select Reference Grid Point, which in uncheck mode it is Origin, while in check mode it allows you to define the reference grid point. It also gives the MX, MY, and MZ SPC moment summation on the selected entity when type is Moment.



• Display: Allows you the option to Contour, Animate and Vector the results of the selected subcase.
