Subcases Sub-Levels

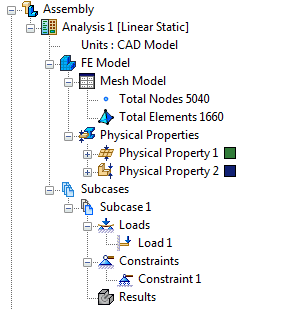

For Static, Linear Buckling, Prestress Static, Linear Steady State Heat Transfer and Nonlinear Steady State Heat Transfer analysis types:

• Subcase

Subcases behave differently between linear and nonlinear solution types. Linear solutions are analogous to completely new and different analyses. Nonlinear solutions use the end of the previous subcase as an initial condition for next subcase.

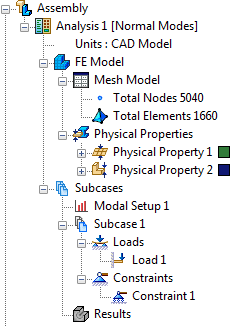

For Normal Modes analysis types:

• Modal Setup
• Subcase

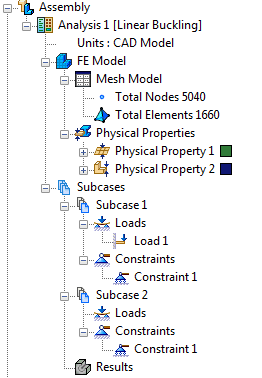

For Linear Buckling analysis types with two subcases by default:

• Subcase 1 (Initial Stress-Linear Static)
• Subcase 2 (Buckling)

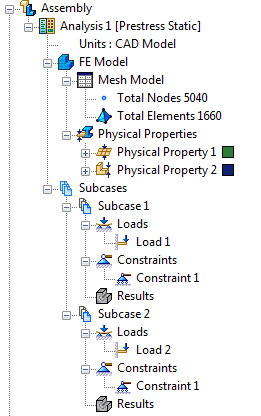

For Prestress Static analysis types with two subcases by default:

• Subcase 1 (Initial Stress-Linear Static)
• Subcase 2 (Linear Static)

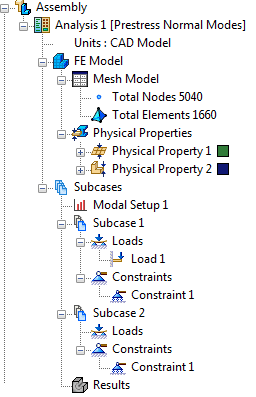

For Prestress Normal Modes analysis types with two subcases by default:

• Modal Setup
• Subcase 1 (Initial Stress-Linear Static)
• Subcase 2 (Linear Static)

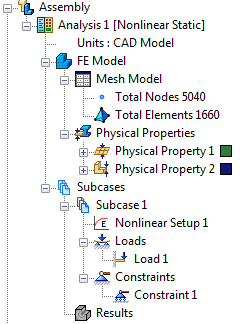

For Nonlinear Static analysis types:

• Subcase
  • Nonlinear Setup

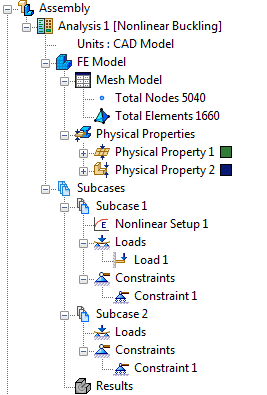

For Nonlinear Buckling analysis types with two subcases by default.

• Subcase 1 (Initial Stress-Nonlinear Static)
  • Nonlinear Setup
• Subcase 2 (Buckling)

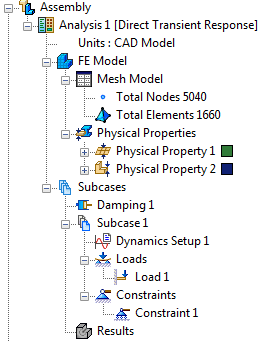

For Direct Transient Response analysis type:

• Damping
• Subcase
  • Dynamics Setup

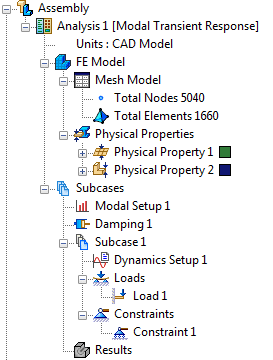

For Modal Transient Response analysis type:

• Modal Setup
• Damping
• Subcase
  • Dynamics Setup

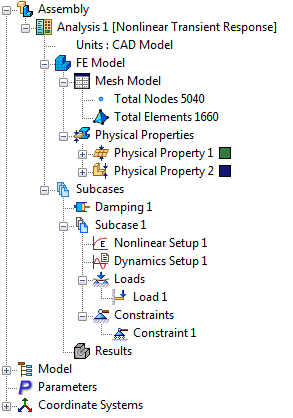

For Nonlinear Transient Response analysis type:

• Damping
• Subcase
  • Nonlinear Setup
  • Dynamics Setup

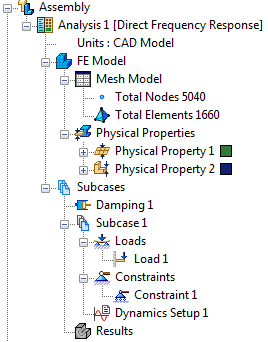

For Direct Frequency Response analysis type:

• Damping
• Subcase
  • Dynamics Setup

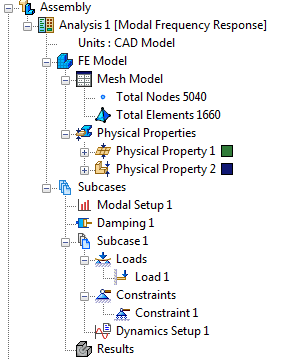

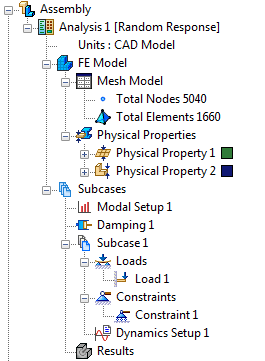

For Modal Frequency Response and Random Response analysis type:

• Modal Setup
• Damping
• Subcase
  • Dynamics Setup

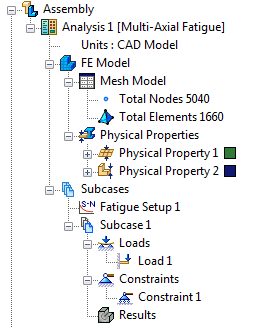

For Multi-Axial Fatigue analysis type:

• Fatigue Setup
• Subcase

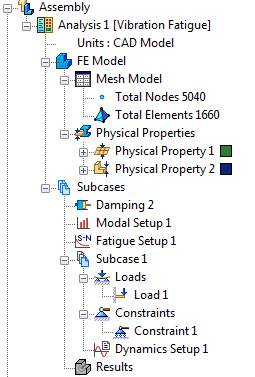

For Vibration Fatigue analysis type:

• Damping
• Modal Setup
• Fatigue Setup
• Subcase
  • Dynamics Setup

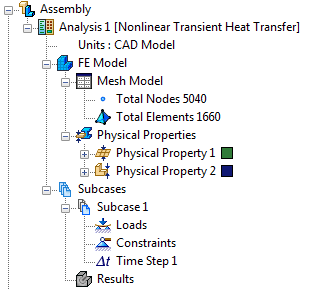

For Nonlinear Transient Heat Transfer analysis type:

• Subcase
  • Time Step
