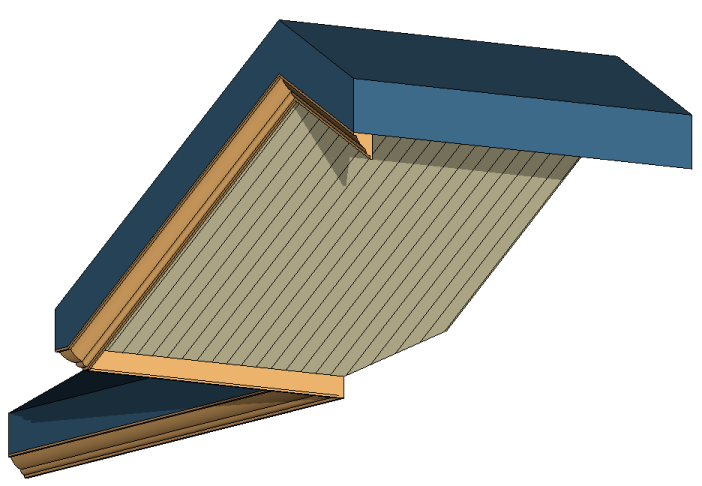

Work with Fascia

After adding fascia, you can add and remove segments, flip its orientation, and resize the fascia.

To add and remove segments

1. In the drawing area, select the fascia.
2. Click Modify | Fascias tabRoof Fascia panel (Add/Remove Segments).
3. Click a reference edge to add a fascia or remove a fascia.

   Watch the status bar for information about valid references.

To resize roof fascia

1. In the drawing area, select the fascia.
2. Move the drag controls to the desired location.

To flip roof fascia

1. In the drawing area, select the fascia.
2. If you are in a 3D view, click the flip controls that appear to flip the fascia around the vertical or horizontal axis.

   If you are in a 2D view, right-click the fascia, and click Flip About Horizontal Axis or Flip About Vertical Axis.
