Define Surface Contact

Now we define surface contact between the horizontal part and the vertical part.

1. With the Selection Shape Point or Rectangle and Selection Select Surfaces commands active...

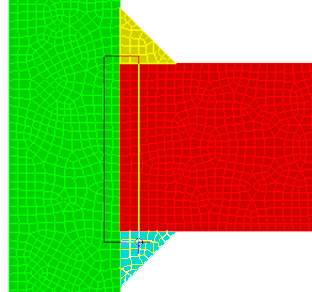

   1. Click and drag to draw a selection rectangle enclosing the surface where the horizontal and vertical parts meet, as shown in the following image. (Do not enclose the edges of the welds.)



      Note: Rectangle selection is necessary so that the surfaces of both parts will be selected to define a contact pair.
   2. Press Enter to select the default name for the contact pair.
2. Right-click in the display area and select Contact Surface Contact.  These two surfaces will not be able to penetrate each other but will freely slide or separate. The surface contact option ensures that tensile and shear loads are only carried by the welds.
