Creating organic shapes

Gearshift lever example by Tom Hasenauer of EDAG

Download dataset here.

Gearshift lever example

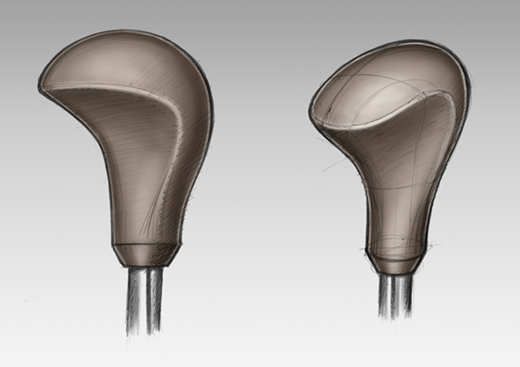

• Organic part for a gear lever

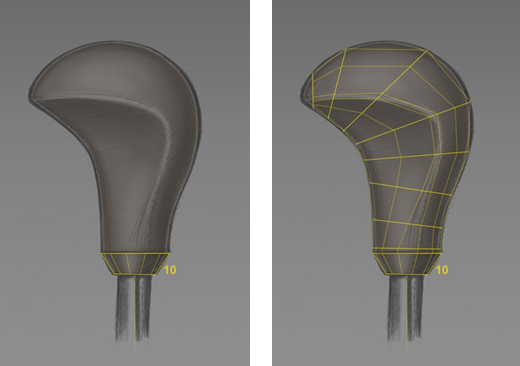

• Aim: 3D-print to try out the haptics
• As to fit the metal rod

Strategy

• The shape can be seen as a series of varying cross-sections
• Start from a cylinder to fit the rod

Steps

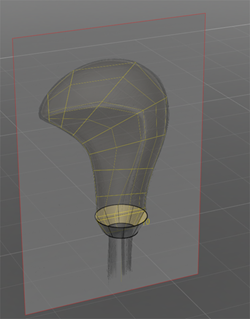

1. Start with a cylinder.

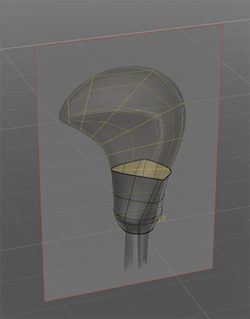

2. Extrude.



   All extrusions.

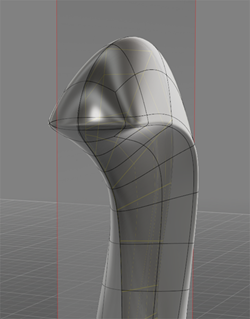

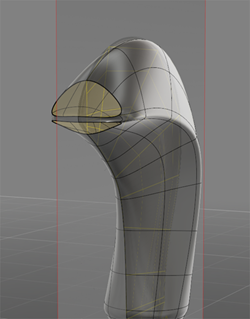

3. Bridge.

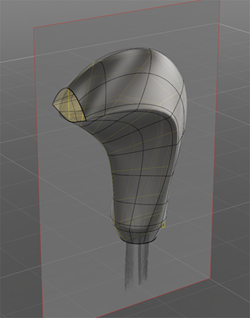

4. Fill holes.

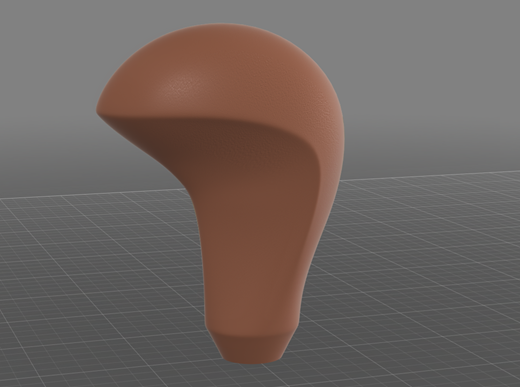

Final result
