Modeling from a simple shape

A car seat example by Tom Hasenauer of EDAG

Download dataset here.

Car seat example

• First scribbles from the stylist
• Aim: Quick volume to see proportions

Strategy

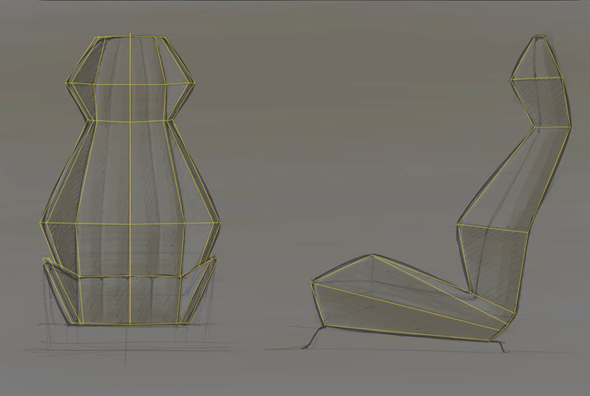

• When simplified the seat consists of segments
• Details and fillets are ignored for now

Steps

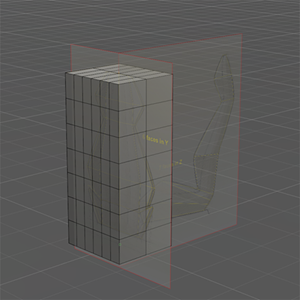

1. Create a box with 2x6x7 faces.

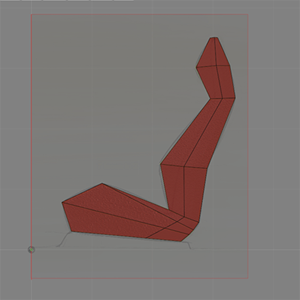

2. Adjust the side view.

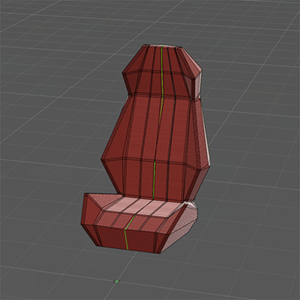

3. Adjust the front view.

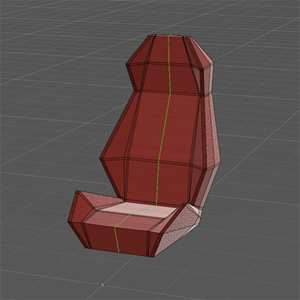

4. Adjust in 3D.

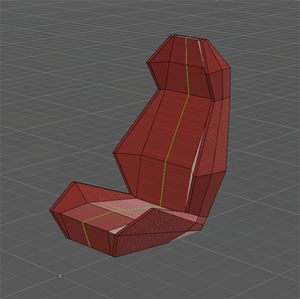

5. Refine.

6. Add details.

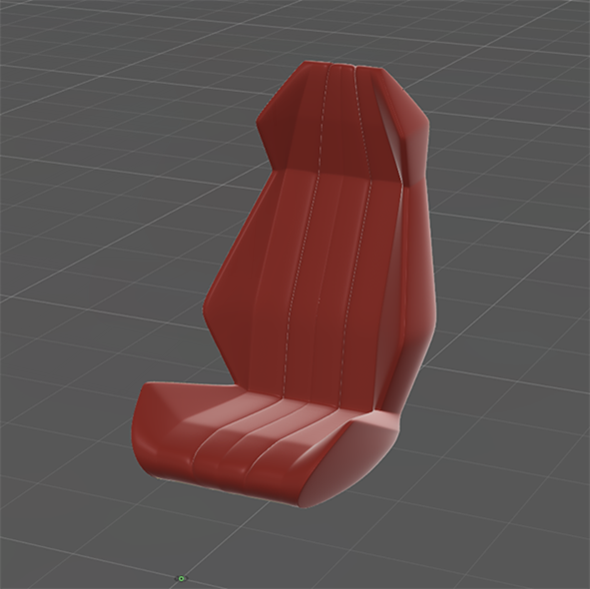

Final result
