Modeling from a 2D layout to 3D

An alloy wheel example by Tom Hasenauer of EDAG

Download dataset here.

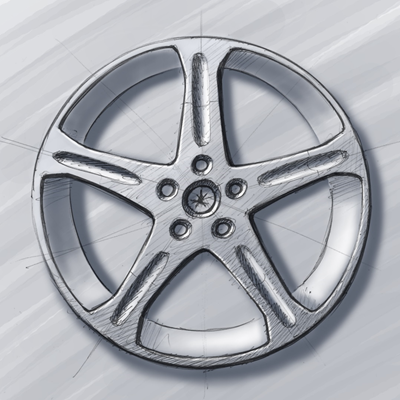

Alloy wheel example

• Spokes with some depressions
• Aim: only front part as model

Strategy

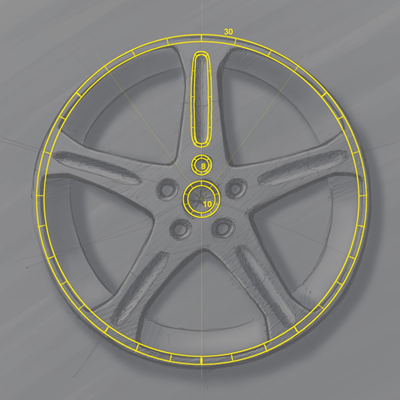

• First define the circular holes and depressions with face rings
• This makes sure they are accurate

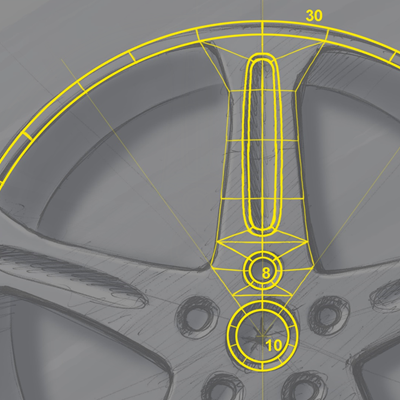

• Build a simplified shape of the spoke with faces
• Try to have as few star points as possible

Steps

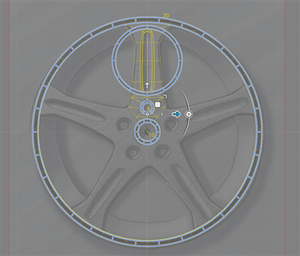

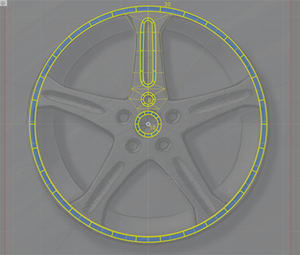

1. Create circles from cylinders, then extrude.

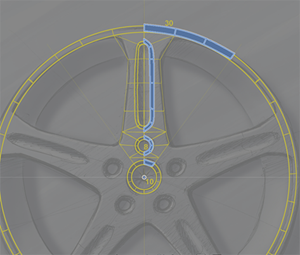

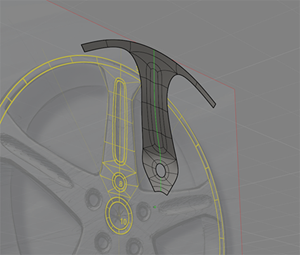

2. Adjust shape for depression.


   Only half a spoke is needed.

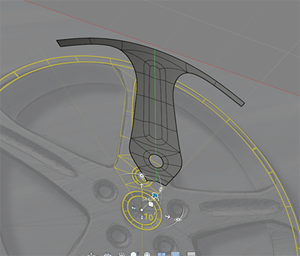

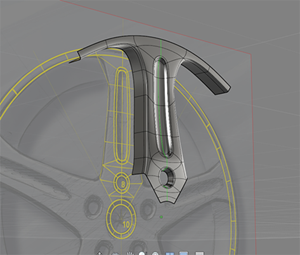

3. Add faces.

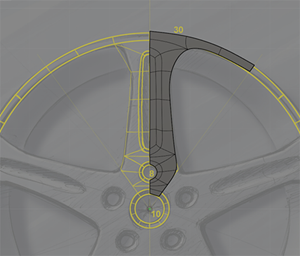

4. Mirror to have a complete spoke.

5. Deform with the Lattice tool.

6. Shape.

7. Apply 5-axis symmetry.

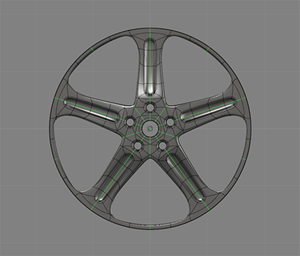

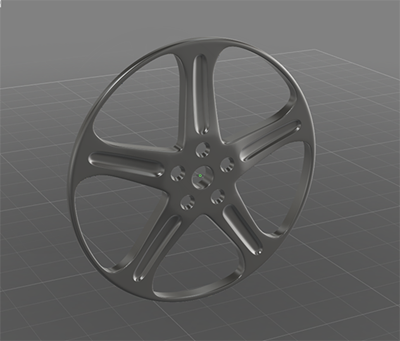

Final result
