Gearshift lever example by Tom Hasenauer of EDAG

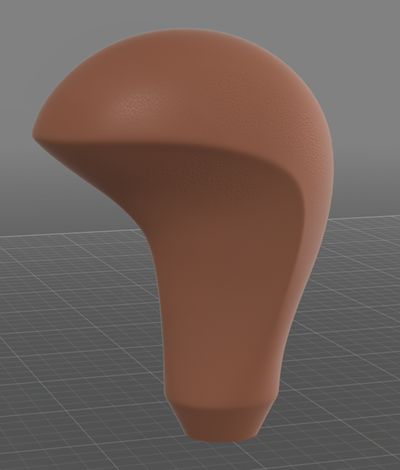

Gear shift example
- The gear lever has been 3D-printed and tested
- Several points to try:

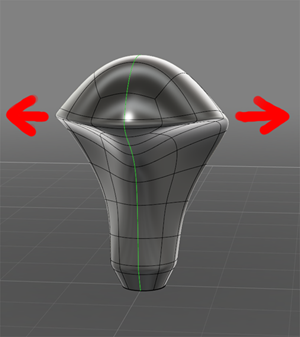

- Wider top to fit the hand better
- Top more backwards compared to the metal rod
- Vary the shape – holes, patterns, add-ons
Possibilities for quick modifications
-

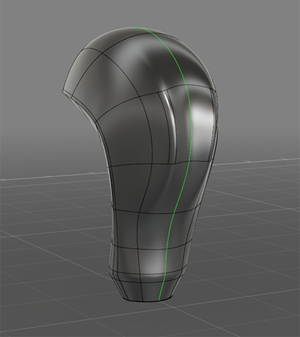

Moving faces or edges
-

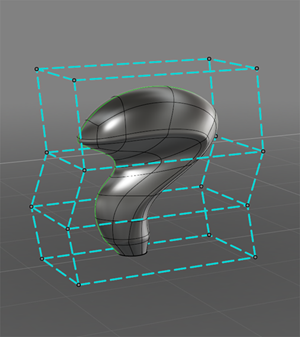

Lattice deformation
-

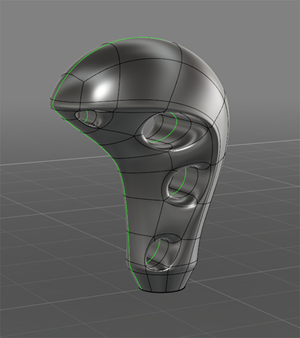

Holes by bridging opposite faces
-

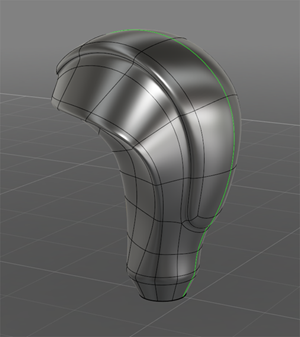

Insert edges for local detail
-
Extruding interior faces

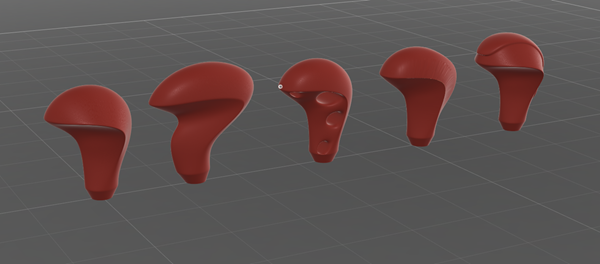

Final result
