Creating complex intersections and trims

An interior trim piece example by Tom Hasenauer of EDAG

Download dataset here.

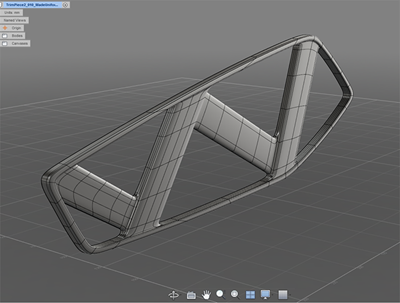

Interior trim piece example

• Decorative trim on the center console
• Many small fillets
• Aim: 3D-printed part for model

Strategy

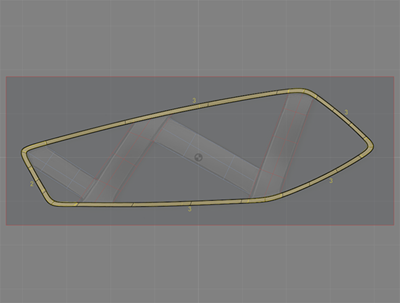

• Build the outer ring
• Then build the straight beams
• SpeedForm will create the fillets

Steps

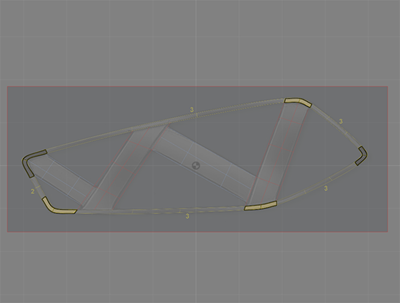

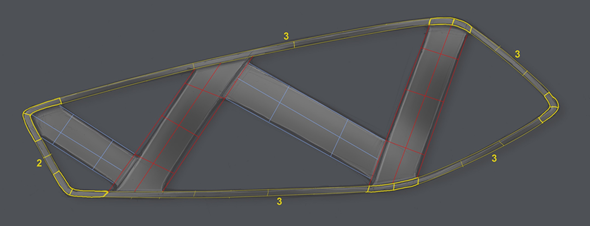

1. Build the corner faces first.

2. Bridge the corners and adjust.

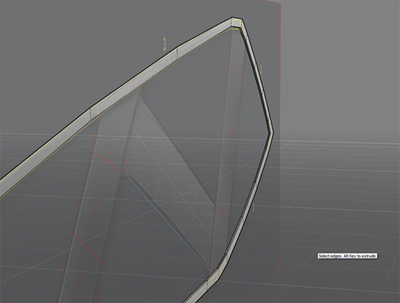

3. Extrude the inner edges twice.

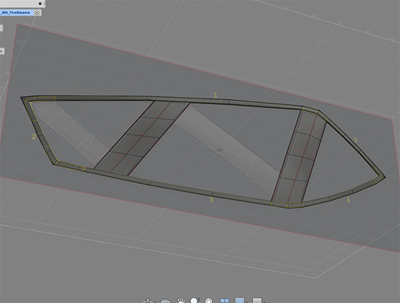

4. Insert edges in the sides and bridge.

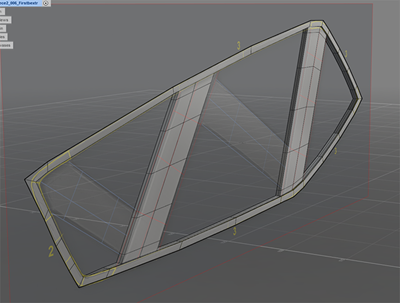

5. Extrude the inner edges twice again.

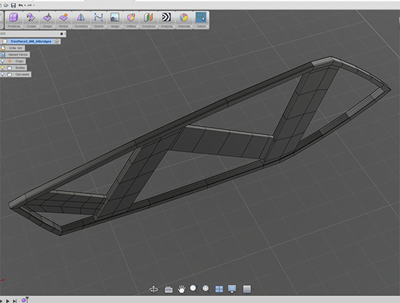

6. Again bridge and extrude twice.

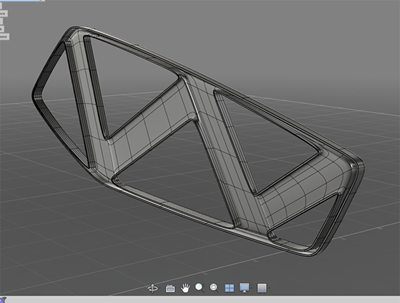

7. Make the surface uniform to relax it.

8. Thicken to create a solid.

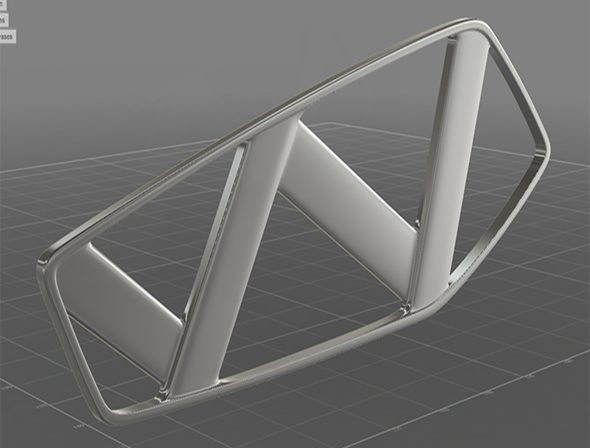

Final result
