Review the Results

We will now review the von Mises stress results.

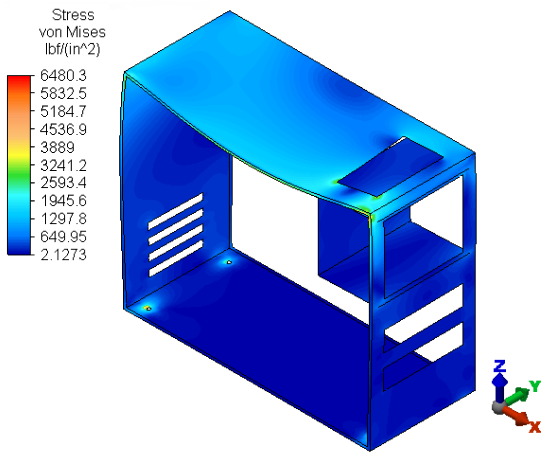

Click Results Contours Stress von Mises. The stress results appear as shown in the following image.

This tutorial is now complete.
