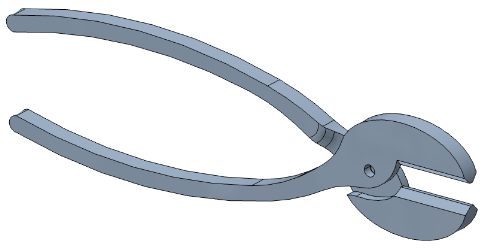

In this tutorial, we step through the meshing of the vise grips model shown in the following image. We add a joint to the holes, connecting the two parts at the fulcrum while allowing them to rotate relative to each other. This model is used in the Vise Grips Static Stress Analysis tutorial.
Features Illustrated:
- Solid meshing
- Adding joints
Goals:
- Import and mesh a universal CAD format model.
- Create a pin-joint between the holes in the two parts.
