A group may contain any random collection of objects that are otherwise unrelated. In some circumstances it is useful to identify the objects of a selected group within a model. The objects of a group can be highlighted.
Change the set of objects within a group
You can add new objects to the group and also remove existing objects at any time.
Note: If deleting objects or removing them from a group leaves the group empty, the group remains defined.
Add elements in a group

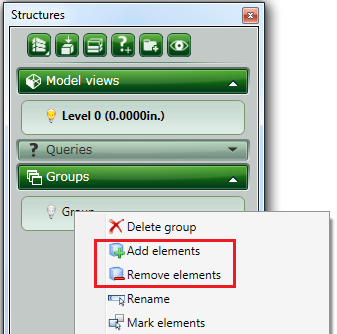

- In the Project Explorer , right-click the group in which you want to add elements.
- Select Add elements from the context menu.
- Select the elements to include in the group and press Enter.
Add selected elements in a group
- Select the elements to include in the group using any selection method.
- In the Project Explorer , right-click the group in which you want to add elements and select Add elements from the context menu.
Remove elements from a group
- In the Project Explorer , right-click the group from which you want to remove elements.
- Select Remove elements from the context menu.
- Select the elements to remove from the group and press <Enter>.
