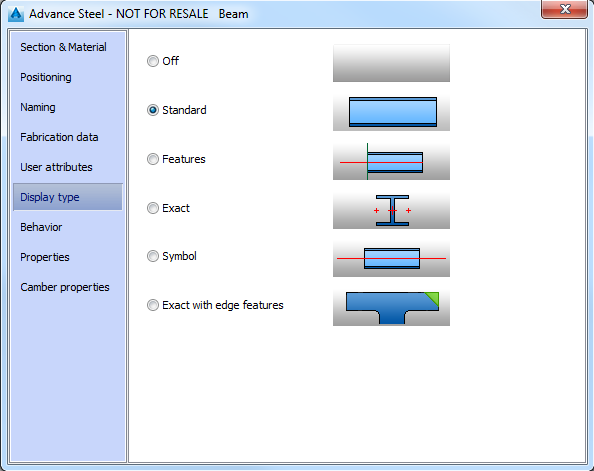

On this tab of the properties dialog box, you can select the beam representation type.
An Advance beam can be displayed in five representation styles:
|
Display type |
Beam |
Description |
|
Standard |
|
Section edges and insertion axes of the beam. |
|
Features |
|
Section edges and processing objects. |
|
Exact |
|
Section edges and gauge lines, crosses on end points of the insertion axis and four reference points in the start and end plane. |
|
Symbol |
|
Insertion axis and a small part of the beam in the center. |
|
Exact with edge features |
|
Section edges and edge processing objects. |
In each representation type, the beam offers different grip points:
|
Display type |
Beam |
Description |
|
Standard |
|
End point insertion axis, reference point in beam center. |
|
Features |
|
Grip points to change the processing. |
|
Exact |
|
Reference and corner points of the beam. |
|
Symbol |
|
See standard representation type. |
