Valve gate controller dialog improvement

You can now see at a glance all settings of the valve gate controllers. Your interaction with the dialog has also been improved.

Create/Edit Valve Gate Controller dialog now displays all possible settings. Five more columns:

• Initial State,
• Trigger Location,
• Open At,
• Close At, and
• Opening Delay Time,

have been added, and the

• New,
• Highlight (previously Show), and
• Edit

buttons have also been re-located to simplify your interaction with the dialog.

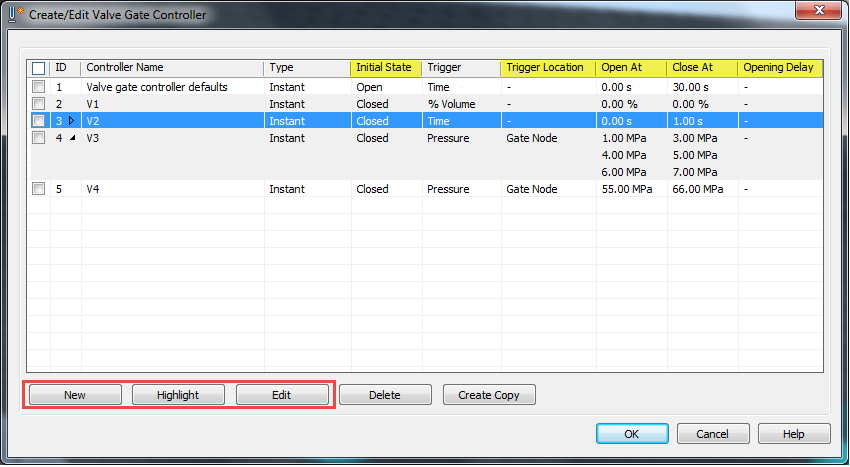

Figure 1: New Create/Edit Valve Gate Controller
