OnePlotWithNotes

Use the OnePlotwithNotes command to add a single result plot to your report, with its accompanying plot notes.

The format for the OnePlotWithNotes command is:

OnePlotWithNotes, <Plot>, <Orientation>, where <Orientation> is an optional argument. If you use a saved view that you have created yourself, include quotation marks around the orientation argument.

Inputs for the Orientation argument include:

• Left
• Right
• Top
• Bottom
• Front
• Back
• Frontleft
• Frontright
• Backleft
• Backright
• Isometric
• <Saved View>
• Current

For example:

• OnePlotWithNotes, "Pressure at end of fill", Isometric

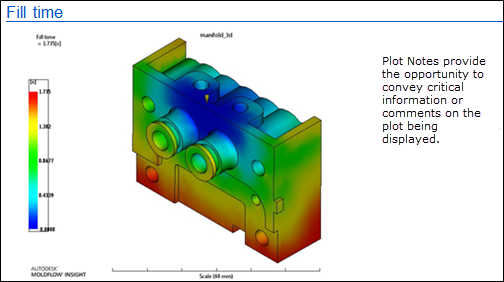

• OnePlotWithNotes, "Fill Time"
