Check the suitability of your model

Applies to 2017.3 Update and later

This is the first step in the process of meshing your model. Any modeling error included in your model will lead to meshing errors and will affect the quality of the results of your analysis.

To verify that your model is free from modeling defects, follow these steps:

CLICK THE STEPS TO SEE THE DETAILS

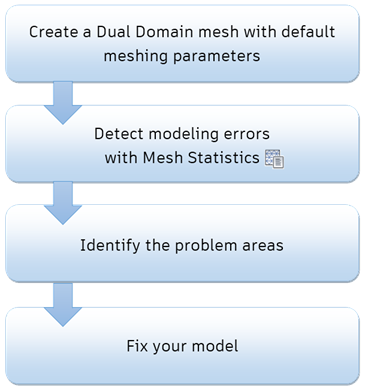

Mesh with default meshing parameters Modeling errors & mesh statistic Identifying the problem areas with Mesh Diagnostics tools Fix your model
Note: For more details, click on the steps on the diagram.
