Results can be imported and viewed in ParaView.
Figure 7.3 shows the computed final distortion from the basic analysis (m1.in) after the part is removed from the build plate, and after the support material has been removed.

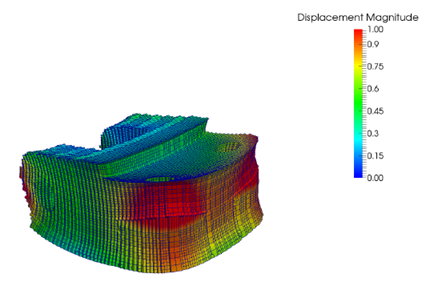

Figure 7.3 Distortion [mm] (10x magnification) basic analysis, (a) After part removal from the build plate
(b) After support material removal from the component
Figure 7.4 shows the computed final distortion from the support structure failure analysis using *UTSR (m2.in) after the part is removed from the build plate, and after the support material has been removed. Note the increase of distortion and elongation of failed elements. This phenomenon is shown more clearly in Figure 7.5.

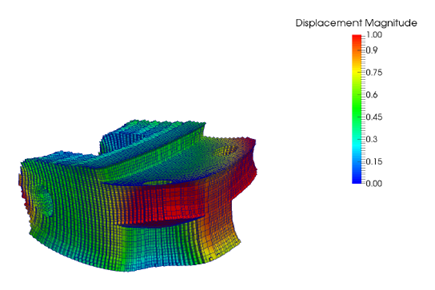

Figure 7.4 Distortion [mm] (10x magnification) support structure failure analysis, (a) After part removal from the build plate

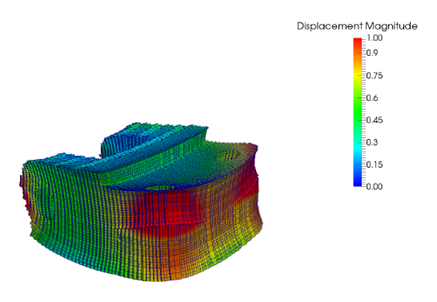

(b) After support material removal from the component

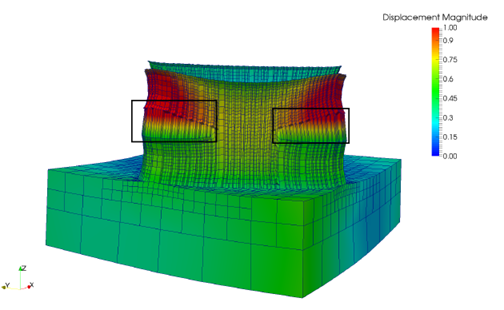

Figure 7.5 Example of failed elements using *UTSR in example m2.in, 10x magnification
