Rotate a View to True North

You can rotate a view to reflect True North (instead of Project North, which is the top of the view).

Rotating a view to True North ensures that natural light falls on the correct sides of the building model for solar studies and rendering.

Before rotating a view to reflect True North, in the site plan, use the survey point to set a known position on the site, and rotate the survey point to True North. This process is demonstrated in the following video.

Video: Rotate True North

Note: This video was recorded using Revit. When performing the procedures using Revit LT, you may notice minor differences in functionality and user interface.

To rotate a view to True North

1. Open a plan view.
   Note: If you need to rotate a 3D view to True North, use the ViewCube.
2. Change the view orientation to True North, as follows:
   1. Access view properties.
   2. On the Properties palette, for Orientation, select True North, and click Apply.

   This change allows you to see accurate shadows in the plan view. See Display Sun and Shadows.

3. Rotate the project to True North, as follows:
   1. Click Manage tabProject Location panelPosition drop-down Rotate True North.
   2. Rotate the building model, using one of the following methods:
      • On the Options Bar, for Angle from Project to True North, enter a value to set the angle of rotation.

        For example, if the difference between Project North (the top of the view) and True North is 45 degrees, enter 45. The model rotates in the view to the specified angle.

      • Click in the view to rotate the model to True North graphically (similar to using the Rotate tool).

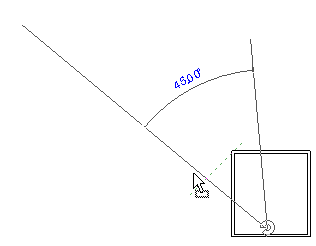

   Rotating a building model in a plan view that is oriented to True North

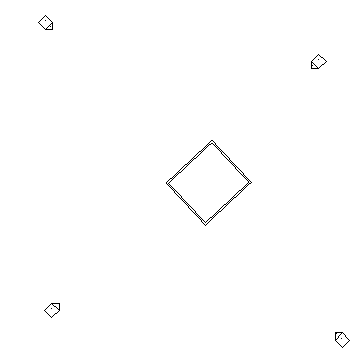

   Plan view with the building model rotated to True North
