Generate a Solid Mesh of the Model

1. Click Mesh Mesh 3D Mesh Settings. The Model Mesh Settings dialog box appears
   1. Click the Options button.
      1. Select Absolute mesh size from the Type drop-down list.
      2. Type 0.5 in the Size input field.
      3. Click OK.
   2. Click Generate Mesh. The meshing process starts.
2. When asked to review the mesh results, click No.

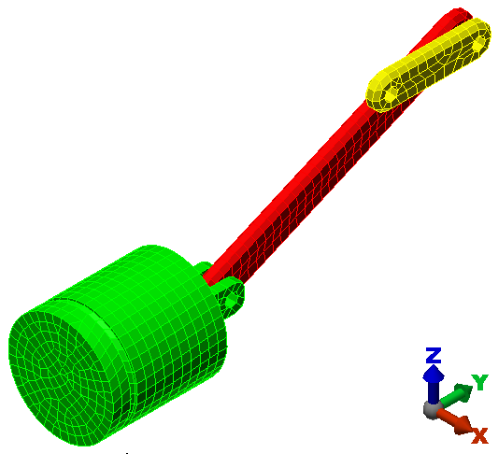

3. To better see the mesh lines, click the View Appearance CAD Surfaces option to turn it off. Instead of using the original CAD surfaces, the model shading is now based on the FEA mesh. Typically, this shading method improves the mesh line rendering along curved surfaces and prevents mesh lines from being hidden by the surface shading. The model should appear as shown in the following image.

4. Use the View Navigate Orbit Orbit, View Navigate ZoomZoom, and View Navigate Pan commands (or the related ViewCube, mouse button, or Navigation Bar tools) to inspect the mesh in various areas of the model.

Note: Even though the default mesh type is Solid, only the surface mesh has been created at this point.  By default, the generation of the interior mesh lines is postponed until the first time that the Run Simulation or Check Model command is executed.
