Refer to the Beam Tower drawing below for the orientation of the angles and the beam endpoint coordinates.
First, we draw the beam elements that represent the 8x6 angle. To use the AISC library to assign the cross sectional properties, local axis 2 must be parallel to the weak axis of bending. The weak axis is parallel to the longer leg of the unequal angle cross-section. Therefore, for the 8x6 angles, the weak axis is parallel to the global Y axis. Since the long leg of the angle is pointing in the -Y direction, as shown by the orientation of Section A-A, we need to define a beam orientation specifically in the -Y direction. In Simulation Mechanical, beams on
Surface 4 are assigned a local axis 2 orientation in the -Y direction (refer to the
Beam Elements page of the Help).
- Click
View
Navigate
Orientation
Front View. We are drawing lines in the XZ plane.
- Select
Draw
Draw
Line. Then...
- Clear the
Use as Construction check box. To be recognized as beam elements, we must draw actual lines, not construction objects.
- Type
4 in the
Surface: field.
- Press
Enter to define the origin as the first point.
- To specify the next point (200,0,600), type
200 in the
X: field, press
Tab twice, type
600 in the
Z: field, and press
Enter.
- Type
50 in the
X: field, press
Tab twice, type
800 in the
Z: field, and press
Enter.
- Type
550 in the
X: field, press
Tab twice, type
800 in the
Z: field, and press Enter.
- Type
400 in the
X: field, press
Tab twice, type
600 in the
Z: field, and press
Enter.
- Type
600 in the
X: field and press
Enter.
Attention: Do not terminate the
Line
command. We will add more line segments in the next page.
- Select
View
Navigate
Enclose.

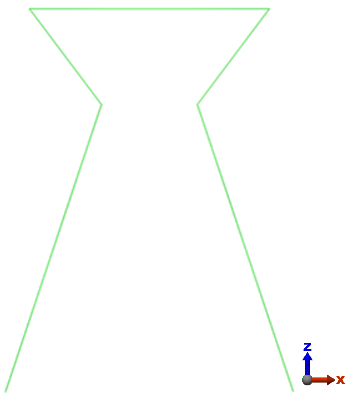

The model should display as shown in the following image.
Note: The attributes of a line (including the part, surface, and layer numbers) may also be modified after a line has been drawn. To do so, use the
Selection
Select
Lines
command, choose the lines to change, right-click in the display area, and choose the
Edit Attributes command.
