Review the Results

We will now review the von Mises stress results.

1. Click the Home icon above the ViewCube for an isometric view of the model.

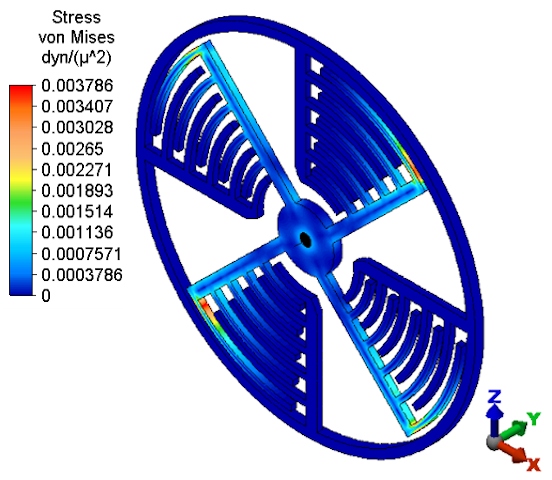

2. Select Results Contours Stress von Mises.  The maximum stress is approximately 0.0038 dyn/μ², and the model displays as shown below.



This tutorial is now complete.
