To Define Style Rules

Use Style rules to apply stylization to features as needed. For example, create styles for existing and removed features and then use style rules to associate the style with the status of each feature. If no stylization rules are defined, features use the default style for the feature class.

1. Click Configuration tabSetup panelManage Rules.
2. In the Rules Configuration dialog box, open the Style node and navigate to the type of feature for which to define the Style rule.

   For example, to create a Style rule that applies styles to transformers based on their status (Existing, Removal), navigate to StyleElectricTransformer.

3. Right-click the feature class and click Create Rule.
4. Define the rule as needed.
The rule for styling transformers based on their status might look like this:

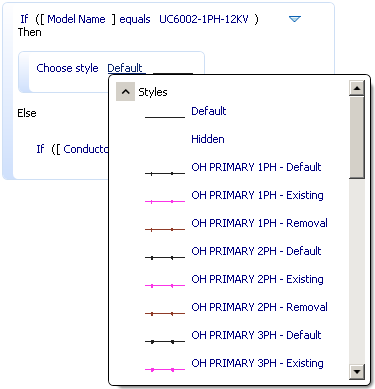

The rule for styling conductors based on their models might look like this:


For more information on working with rules, see About Rule Points.
