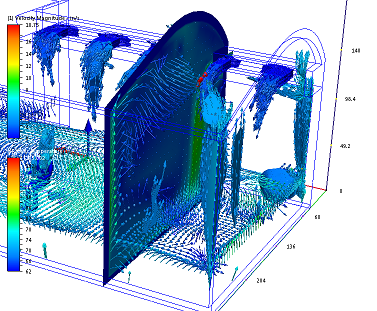

Navigation is the act of interacting with the model to affect its location, orientation, and apparent size within the Graphics window. A good understanding of model navigation is essential for working efficiently with Autodesk® CFD.
Basic Navigation Actions

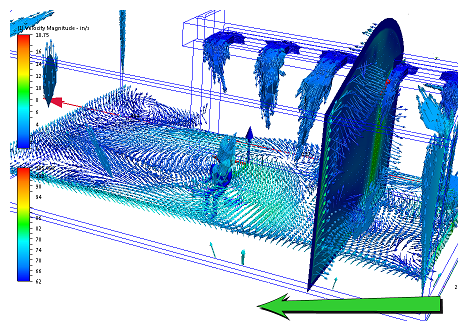

Pan
|
|

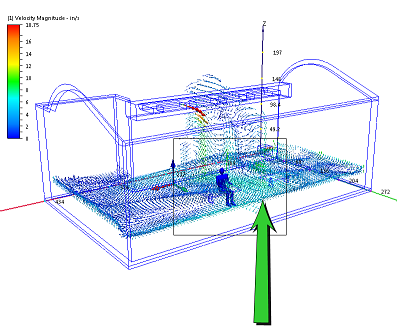

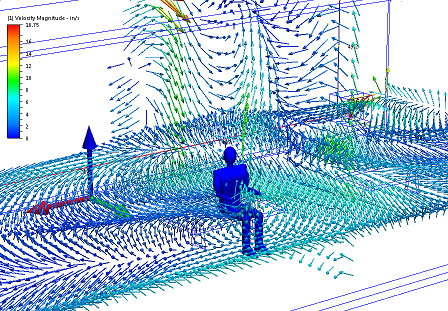

Zoom
|
|

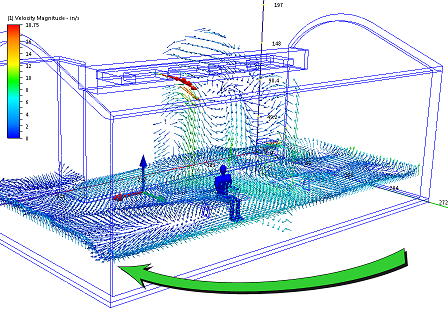

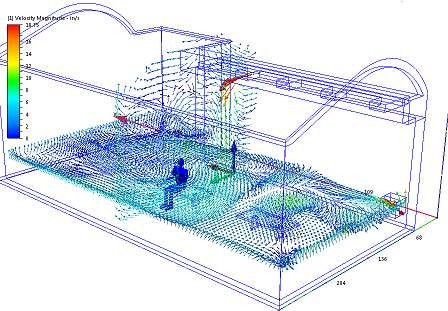

Rotate
|
|
Navigation Methods
There are several ways to navigate the model:
- Use a combination of mouse movements/buttons and keyboard keys.
- Use the ViewCube.
- Use a 3D Navigation Device.
- Use the commands in the View tab of the Ribbon.
