BasicFootpath

This subassembly is used to insert links defining a concrete footpath with optional boulevards.

This is one of a group of Getting Started subassemblies used for simple carriageway modeling, and for tutorial and training purposes.

Attachment

The attachment point is at the inside edge of the inside buffer.

Input Parameters

Note: All dimensions are in meters or feet unless otherwise noted. All slopes are in run-over-rise form (for example, 4 : 1) unless indicated as a percent slope with a “%” sign.

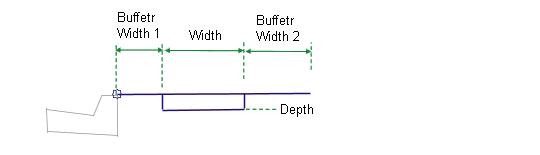

Parameter	Description	Type	Default
Side	Indicates which side the subassembly is inserted toward	Left / Right	Right
Width	Width of the concrete footpath	Numeric, positive	1.8 m 6.0 ft
Depth	Depth of the concrete footpath	Numeric, positive	0.1 m 0.333 ft
Buffer Width 1	Width of the inside buffer zone	Numeric, positive	0 ft, m
Buffer Width 2	Width of the outside buffer zone	Numeric, positive	0 ft, m

Target Parameters

This section lists the parameters in this subassembly that can be mapped to one or more target objects. For more information, see To Specify Corridor Targets.

Target Parameters: None.

Output Parameters

None.

Behavior

The links for the inside buffer zone, footpath, and outside buffer zone are inserted outward from the attachment point at a horizontal slope. The buffer zones may be omitted by setting their widths to zero.

Layout Mode Operation

In layout mode, this subassembly draws the buffer zone and footpath as specified by the input parameters.

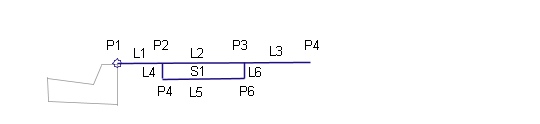

Point, Link, and Shape Codes

The following table lists the point, link, and shape codes for this subassembly that have codes assigned to them. Point, link, or shape codes for this subassembly that do not have codes assigned are not included in this table.

Point, Link, or Shape	Codes	Description
P2	Footpath_In	Inside edge of footpath on finish surface
P3	Footpath_Out	Outside edge of footpath on finish surface
L1	Top Datum
L2	Top Footpath	Footpath structure top links
L3	Top Datum
L4 - L6	Footpath Datum
S1	Footpath	Footpath concrete area
