BasicKerb

This subassembly creates a simple kerb at the edge of carriageway. It can be attached to either outside edge of pavement or to the edge of a central reserve on the inside.

This subassembly is one of a group of Getting Started subassemblies used for simple carriageway modeling, and for tutorial and training purposes.

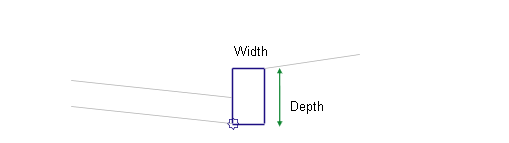

Attachment

The attachment point is on the front face of the kerb for case 1, and on the back face of the kerb for case 2.

Input Parameters

Note: All dimensions are in meters or feet unless otherwise noted. All slopes are in run-over-rise form (for example, 4 : 1) unless indicated as a percent slope with a “%” sign.

Parameter

Description

Type

Default

Side

Specifies which side to place the subassembly.

Left/Right

Right

Width

Width of kerb

Numeric, positive

0.225 m

0.75 ft

Depth

Depth of the kerb

Numeric, positive

0.45 m

1.5 ft

Attachment Point

Specifies the attachment point of the kerb as either Front Face or Back Face

Boolean

Front Face

Depth Below

Depth of the kerb below inside attachment point

Numeric, positive

0.3 m

1.0 ft

Back Height

Exposed height of the back face of kerb

Numeric, positive

0.0 m

0.0 ft

Kerb Face Deflection Specified deflection of front face of the kerb. Specify zero degrees for vertical face. Angular

0 degrees

Apply Deflection to Kerb Top Sets the top of the kerb perpendicular to the front face of the kerb. Boolean: Yes/No

Yes

Target Parameters

This section lists the parameters in this subassembly that can be mapped to one or more target objects. For more information, see To Specify Corridor Targets.

Target Parameters: None.

Output Parameters

None.

Behavior

The subassembly builds a rectangular shape for a simple kerb, with the attachment point at the bottom inside edge of kerb.

Layout Mode Operation

In layout mode, this subassembly draws the kerb shape as specified by the input parameters.

Point, Link, and Shape Codes

The following table lists the point, link, and shape codes for this subassembly that have codes assigned to them. Point, link, or shape codes for this subassembly that do not have codes assigned are not included in this table.

Point, Link, or Shape

Codes

Description

P1

BottomKerb

Inside bottom of kerb

P2

TopKerb

Inside top of kerb

P3

BackKerb

Outside top of kerb

All links

Kerb

S1

Kerb

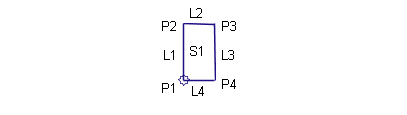

Coding Diagram
