Distances are gaps

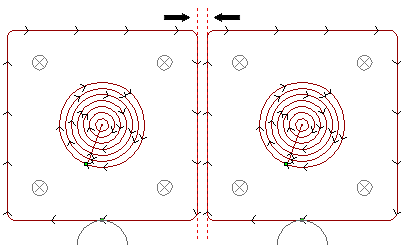

If you have selected the Distances are gaps option:

  1. In the X Gap box, specify the width of the gap between each subsequent copy of the selected toolpath along the X axis.
  2. In the Y Gap box, specify the width of the gap between each subsequent copy of the selected toolpath along the Y axis.
  3. In the Number of Rows and Number of Columns boxes, define the total number of copies by specifying the number of rows and columns you want to create.
  4. Set the direction in which you want to create the block of copies:
    • Copy From Left To Right — Copy the selected toolpaths to the right along the X axis.
    • Copy From Right To Left — Copy the selected toolpaths to the left along the X axis.
      • Note: You can toggle between the Copy From Left To Right and Copy From Right To Left direction by clicking whichever button is currently displayed.
    • Copy From Bottom To Top — Copy the selected toolpaths upwards along the Y axis.
    • Copy From Top To Bottom — Copy the selected toolpaths downwards along the Y axis.
      • Note: You can toggle between the Copy From Bottom To Top and Copy From Top To Bottom direction by clicking the currently displayed button.
