The Vector Association area contains the following settings:
- Select an option in the list to specify how you want to apply the toolpath to the vector artwork.
- To machine all vector artwork on a vector layer, click the name of the vector layer. All vector layers in the model are listed.
- To machine a selection of vectors only, click the Selected Vectors option, then select the vector artwork.
- Reverse selected vectors — Select to reverse the direction of the selected vectors. The direction is indicated by arrows positioned along the length of the selected vector

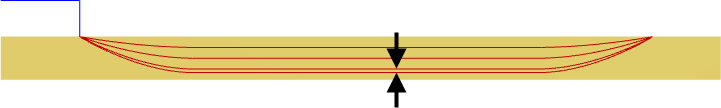

- Final pass thickness — Select to specify a thickness for the final pass of the toolpath.
When selected, enter the final pass value. For example, you may want a general stepover of 3mm with a final pass of 1mm. This in effect gives you a couple of roughing passes followed by a finishing pass.
