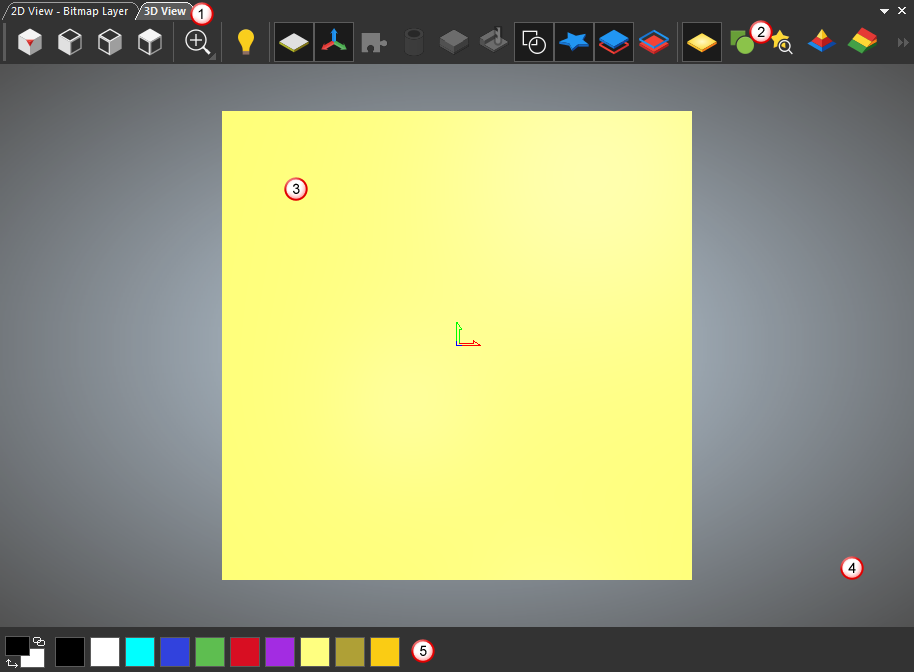

When you select the 3D View tab, the 3D view is displayed. For example:
|
Area |
Description |
|---|---|
|
|
The 3D View tab. |
|
|
The 3D View toolbar. |
|
|
The composite relief. |
|
|
The background. |
|
|
The colour Palette. |
When working with an independent model, the 3D view displays:
- the composite relief resulting from all visible relief layers.
- calculated toolpaths.
- the material block.
- toolpath simulations.
- the artwork on the currently active bitmap layer.
- the artwork on all visible vector layers.
- triangle meshes.
When working in a project, the 3D view can also display:
- the root
Assembly.
assemblies.
replica meshes.
gems.
All of the visible items in the Project Tree are shown in the 3D view when a project is first opened.
