Signal - Source Code Dialog Box

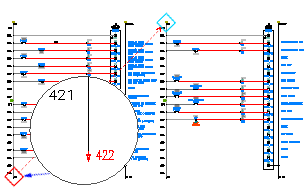

Inserts a wire Source signal arrow and transfers its wire number to destination wire networks.

Find

 Command entry:  AESOURCE

The wire number from a source-arrowed wire network copies to all associated destination-arrowed wire networks. Enter a code using a unique number, word, or phrase of 32 characters maximum to link the source wire network to all destination wire networks internally.

Code	Specifies the code for the source signal.
Use	Places the value shown into the code box.
Description	Specifies the description for the source signal.
Defaults	Opens a text file, WDSRCDST.WDD, from which you can pick from a list of standard descriptions.
Recent	Displays a selection list of codes used within this session.
Drawing	Displays a selection list of codes used on the active drawing.
Project	Displays a selection list of codes used in the active project.
Search	Follows the wire network looking for a destination arrow at the other end. If found, its signal code is shown in the code box.
Pick	Temporarily closes the dialog box so you can pick on an existing wire network. If an existing destination arrow is found, its signal code is shown in the code box.
Signal Arrow Style	Specifies the arrow style to use for the source signal.
OK	Closes the dialog box and updates any associated destination arrows.
