OverlayLevel1Lane1Side

This subassembly overlays one side of an existing roadway, with a leveling layer added as required.

Attachment

The attachment point is the inside edge point of the overlay layer with finished grade cross slope.

Input Parameters

Note: All dimensions are in meters or feet unless otherwise noted. All slopes are in run-over-rise form (for example, 4:1) unless indicated as a percent slope with a "%" sign.
Parameter Description Type Default
Side Specifies which side of the road centerline to place the subassembly. Left/Right Right
Overlay Depth Depth of the overlay layer. Numeric 0.300m (0.300 ft)
Design Lane Width same as Existing Lane Width
  • Yes

    Specifies that the design lane width is the same as existing lane width.

  • No

    Specifies that the design lane width is not the same as existing lane width.

    Note: If No is selected, the Inside Edge of Existing Lane and Outside Edge of Existing Lane parameters will not be applied to the subassembly.
User defined No
Inside Edge of Existing Lane This is the start point for calculating existing ground slope. Numeric 0.000m (0.000 ft)
Outside Edge of Existing Lane This is the end point for calculating existing ground slope. Numeric 12.000m (12.000 ft)
Overlay Slope Options Specifies overlay slope options.
Tip: Flapping is a term used to describe how the Corrected Cross Slope for an overlay in a rehab subassembly is calculated. Flapping outcomes are different, relative to the Slope Tolerance and the Slope Difference between existing ground cross slope and ideal cross slope. If the Slope Difference is less than the Slope Tolerance for the subassembly, then the use case is considered 'within tolerance'. If the Slope Difference is greater than the Slope Tolerance for the subassembly, then the use case is considered "without tolerance."
Note: Slope Tolerance is an absolute value. Therefore, for either a Slope Difference of 0.4% or -0.4%, both have an absolute value of 0.4%. If the Slope Tolerance is 0.5%, the 0.4% absolute Slope Difference would be considered within tolerance.
  • User Defined With Flapping
    Flapping specifies how the Corrected Cross Slope will be calculated, relative to the slope tolerance for the subassembly
    • Flapping Within Tolerance:

      Corrected Cross Slope will be set equal to Ideal Cross Slope

    • Flapping Without Tolerance:

      Corrected Cross Slope will be adjusted to match Existing Ground Slope within Slope Tolerance

  • User Defined Without Flapping
    Flapping will not be used to specify how the Corrected Cross Slope will be calculated, relative to Slope Tolerance for the subassembly
    • Slope Difference Within Tolerance:

      Corrected Cross Slope will be adjusted to match Existing Ground Slope, within Slope Tolerance

    • Slope Difference Without Tolerance:

      Corrected Cross Slope will be adjusted to match the Ideal Cross Slope, within slope tolerance

  • Outside/Inside Lane Superelevation
    Outside or Inside Lane Superelevation will replace Ideal Cross Slope. Corrected Cross Slope values for the overlay layer will be defined by the superelevation table for the section instead of the Ideal Cross Slope.
    Note: If Outside/Inside Lane Superelevation is chosen but the alignment for the rehab corridor does not have a superelevation table defined, then Ideal Cross Slope will be used instead.
  • Match Slope

    The Corrected Cross Slope is always set equal to Existing Ground Slope

  • Use Ideal Cross Slope

    The Corrected Cross Slope Slope is always set equal to Ideal Cross Slope

User Defined Match slope
Ideal Cross Slope Specifies user-defined ideal cross slope. Numeric -2.00%
Lane Width The lane width, determined by the offset of the outside edge of lane from the inside edge of lane. Numeric 0.000m (0.000 ft)
Use Profile Options Select to tie the inside edge of the overlay layer to a profile, adjust elevation to minimum level depth, or lock to previous subassembly.
  • Minimum Level Depth

    The cross slope and elevation adjustments will meet Minimum Level and/or Minimum Mill Depth. The base is the existing surface.

  • Use Profile

    There will be no elevation adjustment. The elevation of the rehab subassembly attachment point will match the assigned profile. The cross slope adjustment will be determined by Overlay Slope Options.

  • Lock to Previous

    There will be no elevation adjustment. The elevation of the rehab subassembly attachment point will match the attachment point of the previous subassembly (in most cases this will be the previous lane's end point). The cross slope adjustment will be determined by Overlay Slope Options.

User defined Minimum Level Depth
Minimum Level Depth The minimum level depth between the existing surface and the bottom of the overlay layer. Numeric 0.300m (0.300 ft)
Slope Tolerance The amount that the overlay cross slope is allowed to vary from the existing ground cross slope or the ideal cross slope. Numeric, positive 0.50%

General Input Parameters

Flapping

Note: Flapping outcomes are different, relative to the Slope Tolerance and the Slope Difference between existing ground cross slope and ideal cross slope.

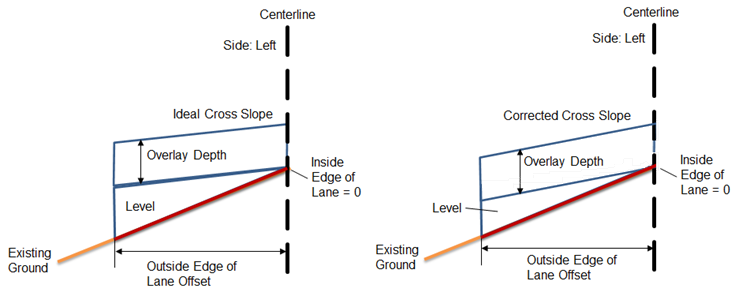

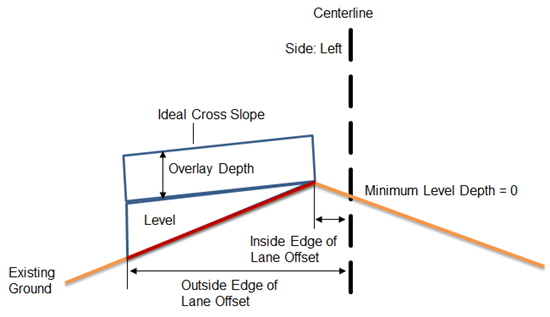

Inside Edge of Lane Offset

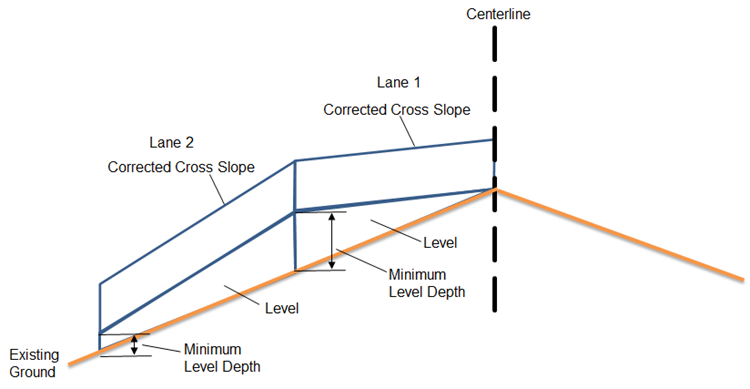

Lock to Previous 1

This use case occurs when the level depth at the start of the second lane is greater than minimum level depth. In this case, the attachment point will lock to the previous subassembly. No vertical adjustment is needed for this use case, but flapping will be applied. Flapping will attempt to adjust cross slope to produce Corrected Cross Slope that will satisfy the Minimum Level Depth if the conditions permit.

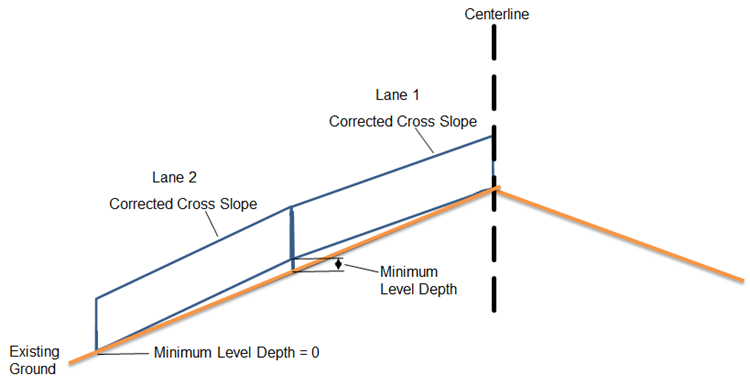

Lock to Previous 2

This use case occurs when the level depth at the start of a second lane is less than the than minimum level depth. In this case, the attachment point will lock to the previous subassembly. No vertical adjustment is needed for this use case, but flapping will be applied. Flapping will attempt adjust cross slope for the overlay layer to produce Corrected Cross Slope that matches a minimum level depth of 0.

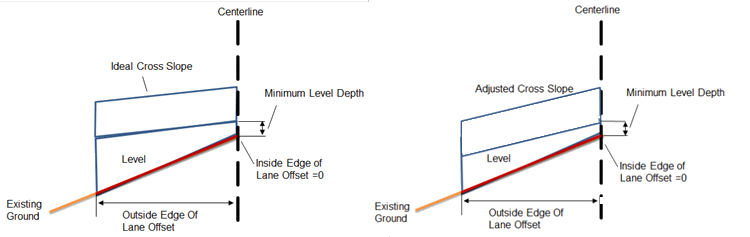

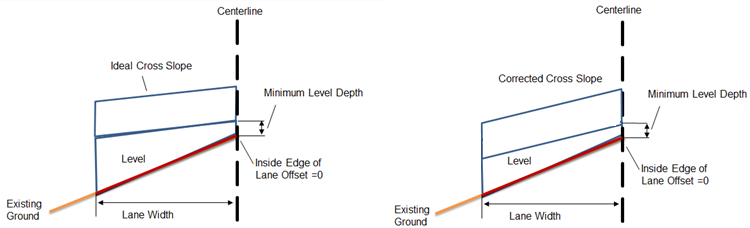

Minimum Level Depth

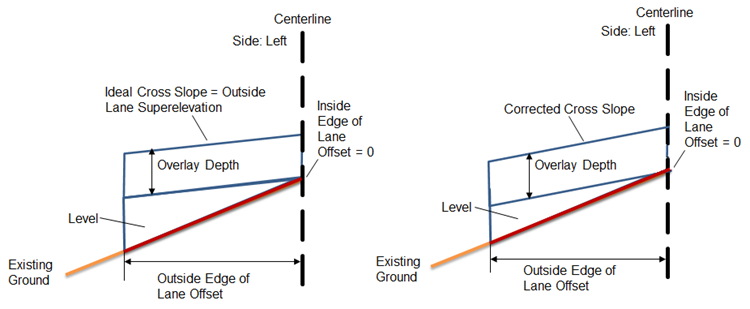

Outside Lane Superelevation

The ideal cross slope is equal to the outside lane superelevation.
Note: A superelevation table for the alignment is required to read these values. Superelevation values will be read from the superelevation table for the alignment.

Output Parameters

Parameter Description Type Default
Corrected Cross Slope This is the adjusted cross slope for the road, which has been optimized to match, as closely as possible, the rehab subassembly parameters you specified. Numeric -2.00%
Existing Ground Slope The cross slope (%) of the existing ground profile, calculated from the inside edge of the lane to the outside edge of the lane. Numeric percentage

Target Parameters

Parameter Description Required?
Target Surface Name of the surface defining the existing roadway Yes
Crown Offset Target Name of the object defining the offset of the crown point. The following object types can be used as targets for specifying this offset: alignments, polylines, feature lines, or survey figures. No
Inside Edge of Lane Offset Target Name of the object defining the offset of the inside edge of lane. The following object types can be used as targets for specifying this offset: alignments, polylines, feature lines, or survey figures. No
Lane Width Target Name of the object defining the offset of the outside edge of lane. The following object types can be used as targets for specifying this offset: alignments, polylines, feature lines, or survey figures. No
Inside Edge of Existing Lane Offset Target Name of the object defining the inside sample point offset will be used to calculate the existing surface slope. The following object types can be used as targets for specifying this offset: alignments, polylines, feature lines, or survey figures. No
Outside Edge of Existing Lane Offset Target Name of the object defining the outside sample point offset will be used to calculate the existing surface slope. The following object types can be used as targets for specifying this offset: alignments, polylines, feature lines, or survey figures. No

Behavior

This subassembly assumes that no milling layer is added. Flapping is within tolerance to meet no mill and minimum level. You can adjust elevation if needed to meet the no mill and minimum level. Procedurally, flapping should always be applied first, followed by vertical adjustment of the overlay layer if needed.
Note: It is not supported to adjust the corrected cross slope after vertical adjustments are performed on the overlay layer.

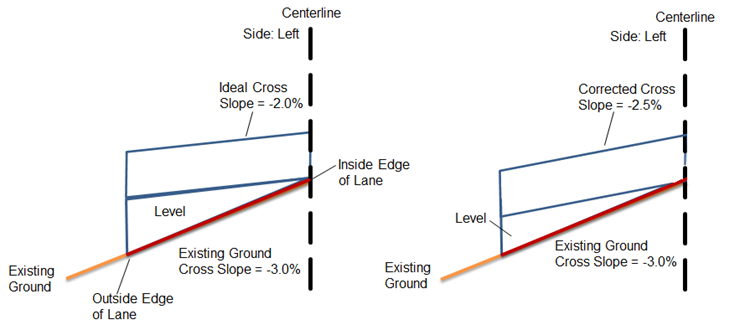

Case 1-1: Ideal Cross Slope is greater than Existing Ground Cross Slope

Inputs:
Inputs
Ideal Cross Slope -2.0%
Minimum Level Depth 0
Slope Tolerance 0.50%
Overlay Slope Options User Defined with Flapping
Use Profile Options Minimum Level Depth
Inside Edge of Lane Offset true (values vary)
Outside Edge of Lane Offset true (values vary)
Calculations:
Input Value
Existing Ground Cross Slope -3.0%
Existing Ground Cross Slope - Ideal Cross Slope -1%
Slope Tolerance Existing Ground Slope minus Ideal Cross Slope is -1%, which is greater than the 0.5% Slope Tolerance
Corrected Cross Slope Corrected Cross Slope will be set between -1.5% and -2.5% cross slope
Adjust elevation 0
Output Value
Corrected Cross Slope -2.5%

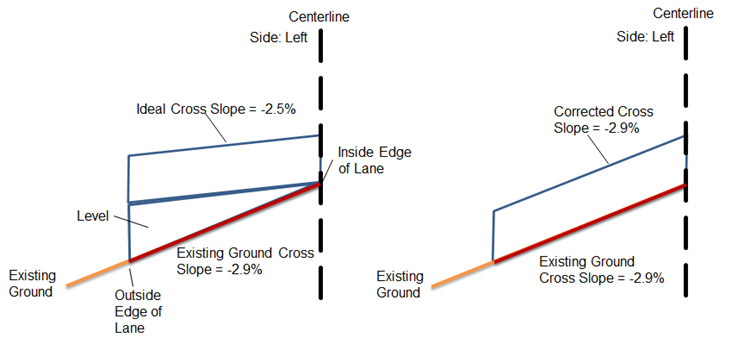

Case 1-2: Ideal Cross Slope is greater than Existing Ground Cross Slope

Inputs:
Inputs
Ideal Cross Slope -2.5%
Minimum Level Depth 0
Slope Tolerance 0.50%
Overlay Slope Options User Defined with Flapping
Use Profile Options Minimum Level Depth
Inside Edge of Lane Offset true (values vary)
Outside Edge of Lane Offset true (values vary)
Calculations:
Input Value
Existing Ground Cross Slope -2.0%
Existing Ground Cross Slope - Ideal Cross Slope -0.4%
Slope Tolerance Existing Ground Slope minus Ideal Cross Slope is -0.4%, which is less than the 0.5% Slope Tolerance.
Corrected Cross Slope Corrected Cross Slope will be set between -2.0% and -3.0%
Output Value
Corrected Cross Slope -2.9%

Case 1-3: Ideal Cross Slope is less than Existing Ground Cross Slope

Inputs:
Inputs
Ideal Cross Slope -2.0%
Minimum Level Depth 0
Slope Tolerance 0.50%
Overlay Slope Options User Defined with Flapping
Use Profile Options Minimum Level Depth
Inside Edge of Lane Offset true (values vary)
Outside Edge of Lane Offset true (values vary)
Calculations:
Input Value
Existing Ground Cross Slope -1.6%
Existing Ground Cross Slope - Ideal Cross Slope -0.4%
Slope Tolerance Existing Ground Slope minus Ideal Cross Slope is -0.4%, which is less than the 0.5% Slope Tolerance
Corrected Cross Slope Corrected Cross Slope will be set between -1.5% and -2.5%
Output Value
Corrected Cross Slope -1.6%

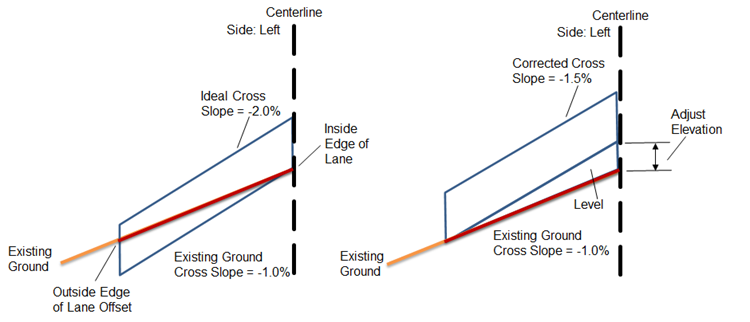

Case 1-4: Ideal Cross Slope is less than Existing Ground Cross Slope

Inputs:
Inputs
Ideal Cross Slope -2.0%
Minimum Level Depth 0
Slope Tolerance 0.50%
Overlay Slope Options User Defined with Flapping
Use Profile Options Minimum Level Depth
Inside Edge of Lane Offset true (values vary)
Outside Edge of Lane Offset true (values vary)
Calculations:
Input Value
Existing Ground Cross Slope -1.0%
Existing Ground Cross Slope - Ideal Cross Slope -1.0%
Slope Tolerance Existing Ground Slope minus Ideal Cross Slope is -1.0%, which is less than the 0.5% Slope Tolerance
Corrected Cross Slope Corrected Cross Slope will be set between -1.5% and -2.5%
Output Value
Corrected Cross Slope -1.5%

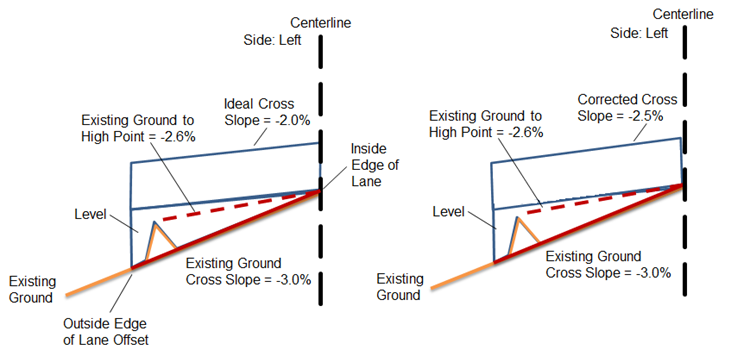

Case 2-1: Ideal Cross Slope is greater than High Point

Inputs:
Inputs
Ideal Cross Slope -2.0%
Minimum Level Depth 0
Slope Tolerance 0.50%
Overlay Slope Options User Defined with Flapping
Use Profile Options Minimum Level Depth
Inside Edge of Lane Offset true (values vary)
Outside Edge of Lane Offset true (values vary)
Calculations:
Input Value
Existing Ground Cross Slope -3.0%
High Point Cross Slope, measured from Inside Edge of Lane to High Point -2.6%
High Point Cross Slope - Ideal Cross Slope -0.6%
Slope Tolerance High Point Cross Slope minus Ideal Cross Slope is -0.6%, which is greater than the 0.5% Slope Tolerance
Corrected Cross Slope Corrected Cross Slope will be set between -1.5% and -2.5%
Output Value
Corrected Cross Slope -2.5%

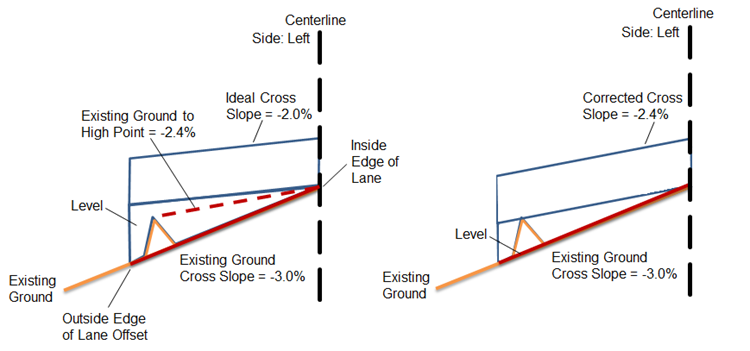

Case 2-2: Ideal Cross Slope is greater than High Point

Inputs:
Inputs
Ideal Cross Slope -2.0%
Minimum Level Depth 0
Slope Tolerance 0.50%
Overlay Slope Options User Defined with Flapping
Use Profile Options Minimum Level Depth
Inside Edge of Lane Offset true (values vary)
Outside Edge of Lane Offset true (values vary)
Calculations:
Input Value
Existing Ground Cross Slope -3.0%
High Point Cross Slope, measured from Inside Edge of Lane to High Point -2.4%
High Point Cross Slope - Ideal Cross Slope -0.4%
Slope Tolerance High Point Cross Slope minus Ideal Cross Slope is -0.4%, which is less than the 0.5% Slope Tolerance
Corrected Cross Slope Corrected Cross Slope will be set between -1.5% and -2.5%
Output Value
Corrected Cross Slope -2.4%

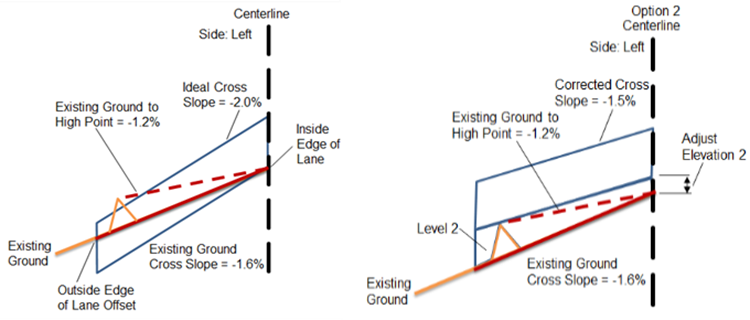

Case 2-3: Ideal Cross Slope is less than High Point

Inputs:
Inputs
Ideal Cross Slope -2.0%
Minimum Level Depth 0
Slope Tolerance 0.50%
Overlay Slope Options User Defined with Flapping
Use Profile Options Minimum Level Depth
Inside Edge of Lane Offset true (values vary)
Outside Edge of Lane Offset true (values vary)
Calculations:
Input Value
Existing Ground Cross Slope -1.6%
High Point Cross Slope, measured from Inside Edge of Lane to High Point -1.2%
High Point Cross Slope - Ideal Cross Slope -0.8%
Existing Ground Cross Slope - Ideal Cross Slope 0.4%
Slope Tolerance High Point Cross Slope minus Ideal Cross Slope is -0.8%, which is greater than the 0.5% Slope Tolerance. Existing Ground Cross Slope minus Ideal Cross Slope is 0.4%, which is less than the 0.5% Slope Tolerance.
Corrected Cross Slope Corrected Cross Slope will be set between -1.5% and -2.5%
Output Value
Corrected Cross Slope -1.5%

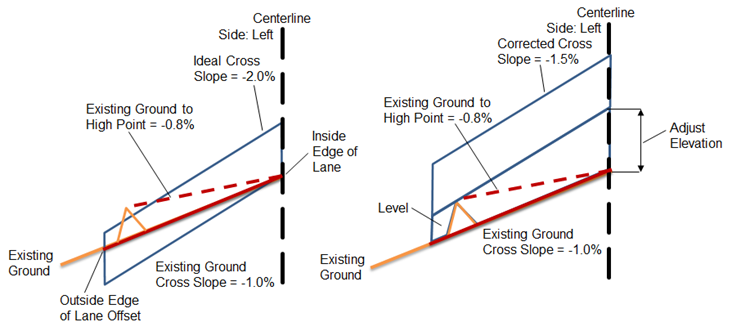

Case 2-4: Ideal Cross Slope is less than High Point

Inputs:
Inputs
Ideal Cross Slope -2.0%
Minimum Level Depth 0
Slope Tolerance 0.50%
Overlay Slope Options User Defined with Flapping
Use Profile Options Minimum Level Depth
Inside Edge of Lane Offset true (values vary)
Outside Edge of Lane Offset true (values vary)
Calculations:
Input Value
Existing Ground Cross Slope -1.0%
High Point Cross Slope, measured from Inside Edge of Lane to High Point -0.8%
High Point Cross Slope - Ideal Cross Slope -1.2%
Existing Ground Cross Slope - Ideal Cross Slope 1.0%
Slope Tolerance High Point Cross Slope minus Ideal Cross Slope is -1.2%, which is greater than the 0.5% Slope Tolerance. Existing Ground Cross Slope minus Ideal Cross Slope is 1.0%, which is greater than the 0.5% Slope Tolerance.
Corrected Cross Slope Corrected Cross Slope will be set between -1.5% and -2.5%
Output Value
Corrected Cross Slope -1.5%

Point, Link, and Shape Codes.

The following table lists the point, link, and shape codes for this subassembly that have codes assigned to them. Point, link, or shape codes for this subassembly that do not have codes assigned are not included in this table.

Point, Link, or Shape Code Description
P1, P2 EOV Overlay edges on finish grade
P3, P4 EOV_Overlay Edges of bottom of overlay
P5, P6 EOV_Leveling Edges of bottom of level
L1 Top, Pave Top of overlay
L2, L3, L4 Overlay Overlay links
L5, L6 Level For the leveling case
S1 Overlay Area between the top and bottom of overlay
S2 Level Area between the top and bottom of level
L7 Existing Ground Cross slope of the existing ground

Coding Diagram

Parent topic: Subassembly Reference (continued)
