There are a few different settings in Action for colour managing Action-imported media (that is, media being read from an external location). Note that these settings do not affect input media entering Action through Batch FX, and the timeline, for example.
In the Action, the colour space of an image is displayed alongside the resolution information for that image. If the colour space of an image doesn't match Action's colour space, the resolution and colour space are displayed in blue. To display the resolution and colour space of an image in the Action schematic, use .
You can set the default Action colour space in Colour Management Preferences.
In the Action setup menu Rendering tab, use the Colour Management settings to set the default behaviour of Action:
- Active button
- Enables Colour Management in Action. When enabled, imported media located in the Read File menu of a texture map using the Scene Linear option are affected. This option cannot be enabled when the connected Back media uses a non-working Action colour space, or when an unsupported colour space is displayed in the Colour Space field.
- Working Colour Space box
- Select whether to use the colour space defined by the backplate, or select User Defined to set a colour space from the drop-down list below. This also controls the tagged colour space of non-data outputs.
- User Defined Working Colour Space box
- Select a working colour space for imported media in Action. Available when User Defined is selected in the Action Colour Space Mode box. This also controls the tagged colour space of non-data outputs.

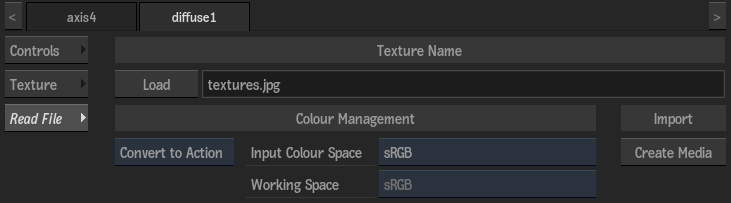

When importing through the Import node (3D models in FBX or 3DStudio formats, and Photoshop PSD files), or editing the Read File menu of a texture map, the following options are available if Colour Management is active:
- Colour Management Mode box
- Select the colour management mode to apply.
Select: To: Auto Convert Convert content using the media file's metadata (such as OpenEXR), using a rule, or by manually selecting the Input Colour Space and the Working Space. Auto Convert allows you to set the media to any Working Space of your liking and does not change if you later switch to Action Working.
Tag Only Tag content with one of the various colour spaces available in the list, using media file metadata, or using a user-defined colour space. Tagged media is not converted to the destination colour space. Flame Assist displays it in the destination colour space for viewing purposes. The original media remains in its original format and colour space. Convert to Action Defer the choice of the working colour space to the Action Setup menu Colour Management settings. This allows you to manage the working colour space of every media imported with Convert to Action from the Action preferences.
- Input Colour Space box
- Select the input colour space of your media.
- Working Space box
- Select the destination colour space of your media.
