Significant improvements to the Connected Design on A360 workflow make it faster and easier to conduct 3D design reviews with your team and other project collaborators anywhere, on any device.

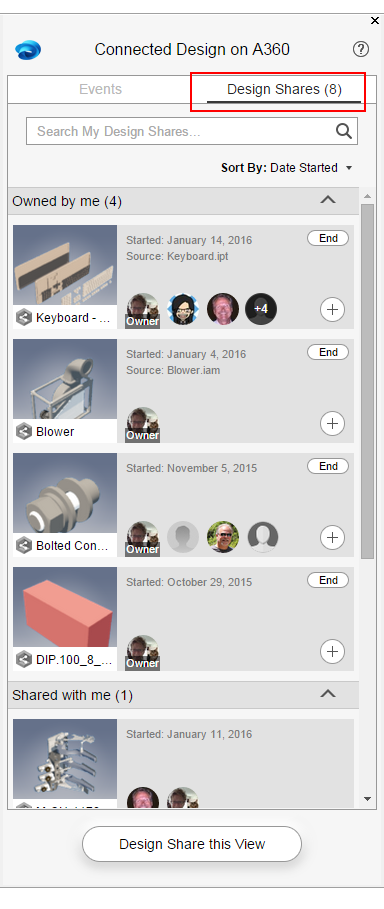

Tools for Managing Design Shares are Now Also Available in Inventor
The tools for managing Design Shares, previously only available on your A360 drive, are now also available in Inventor. They are located in the Connected Design on A360 panel on the new Design Shares tab. Design Share owners can now manage Design Shares directly inside of Inventor.
Quickly Move or Hide the Connected Design Entry Button

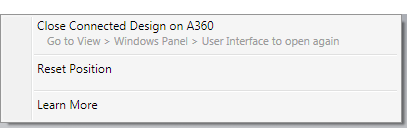

- You can now move the Connected Design entry button to a location on the graphics window that works best for you. You can also move the Connected Design entry button back to its default position using the new context menu on the Connected Design entry button.
- New context menu options on the Connected Design entry button also make it easy to turn off Design Shares and get Help with using Inventor Connect.

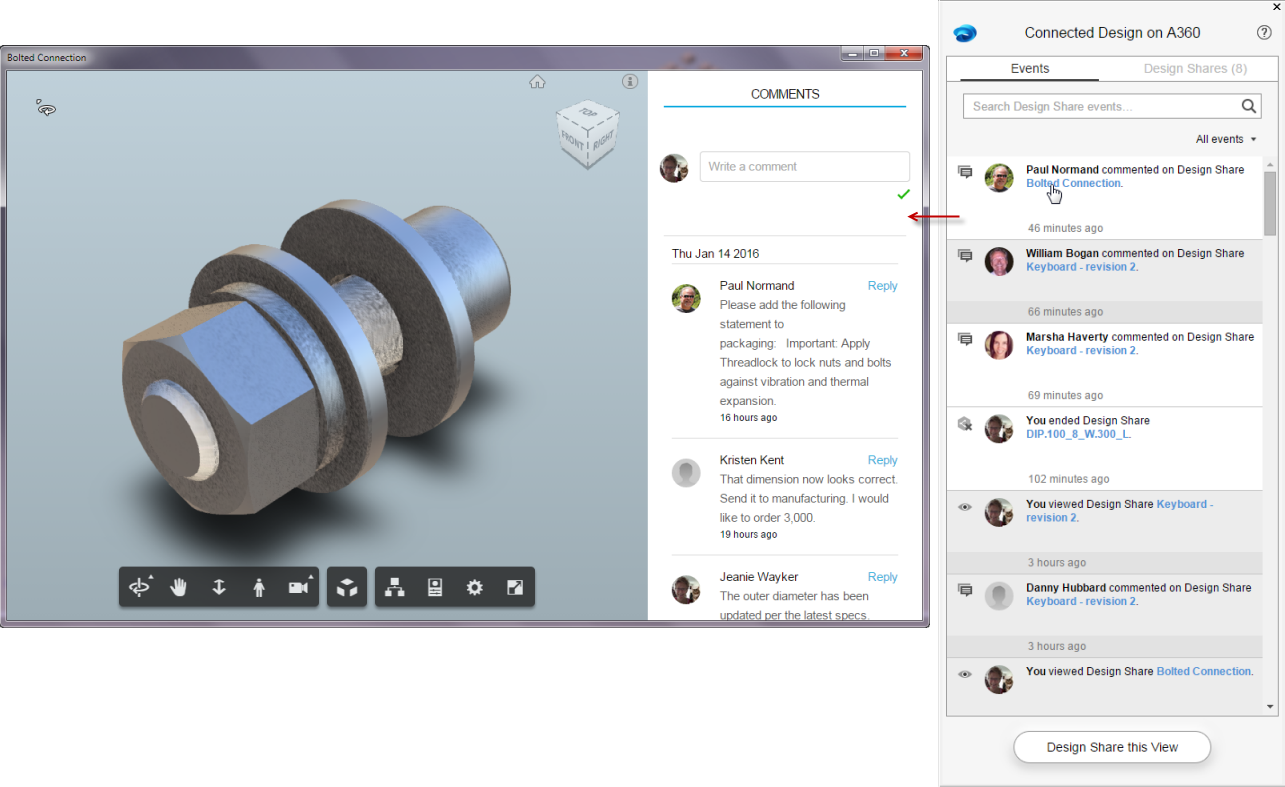

Design Share Comments Now Available Inside Inventor
Owners and collaborators who have Inventor 2017 can now open a Design Share, view, and post comments in the viewing window inside of Inventor.
Improved Assistance with Configuration Issues
- Configuration issues are now reported in the Design Shares panel. You can press F1 to go to a topic that explains different configuration issues and provides steps for resolving.
- The Connected Design entry button changes to a broken share icon to indicate an issue with configuration.
