Connections between items within a referenced object are not allowed because these connections are not recorded by MotionBuilder.

The following figures illustrate the connections that are allowed.

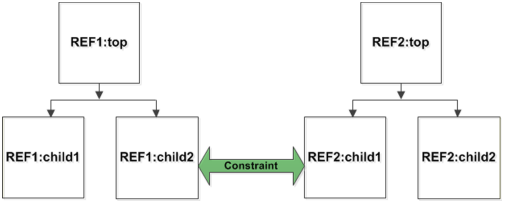

• This figure shows an allowed constraint.

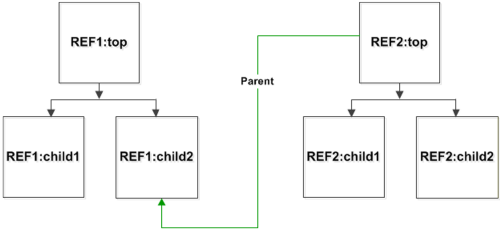

• This figure shows an allowed parent connection.


The following figures illustrate the connections that are not allowed.

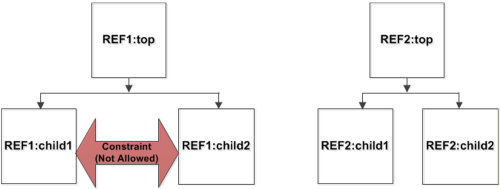

• This figure shows a constraint that is not allowed.

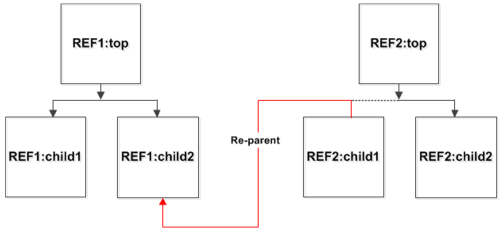

• This figure shows a re-parent connection that is not allowed.

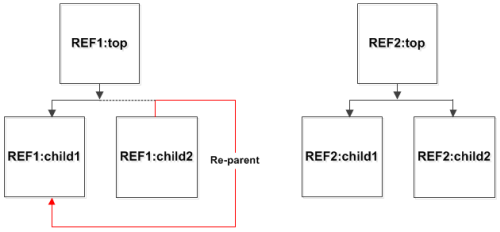

• This figure shows another re-parent connection that is not allowed.
