Set Up the Analysis

  1. In the tree view, right-click on Analysis 1 and choose Edit.
  2. Type Manifold Analysis for Name, and NL SS Heat Transfer for Title. Select Nonlinear Steady State Heat Transfer from the Type drop-down menu.

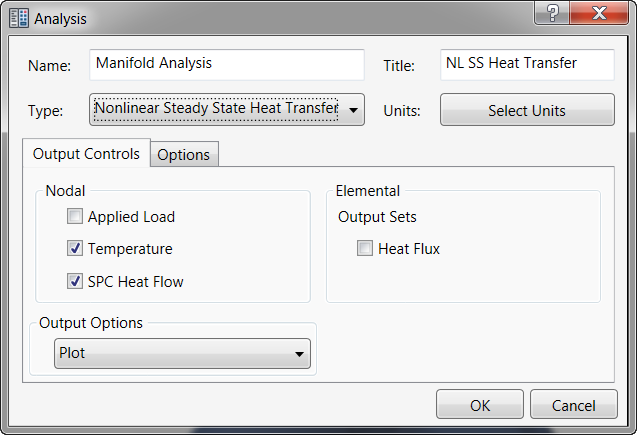

  3. The dialog should look as shown below.

  4. Click OK to finish setting up the analysis and return to the tree view. The model is now ready to be analyzed.
