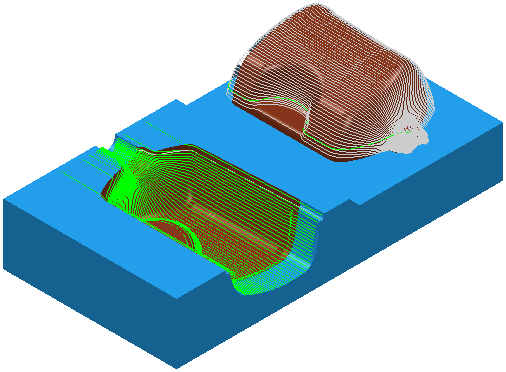

The Line Projection Finishing strategy projects a cylindrical pattern onto the model, which is then machined. This is a useful technique for bottle molds.
The pages associated with Line Projection Finishing strategy are:
- Line projection finishing — The main page used to define a line projection toolpath.
- Pattern — Settings to specify the limits and orientation of the toolpath.
- Automatic verification — Settings to automatically verify the toolpath when calculating it.
The remaining pages are common toolpath strategy pages.
