Selection Filter example

For example, if you have some coloured boxes:

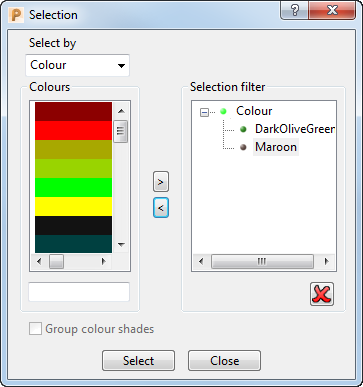

In the Selection dialog select DarkOliveGreen and Maroon as the colours.

The components which are DarkOliveGreen and Maroon in colour are selected.

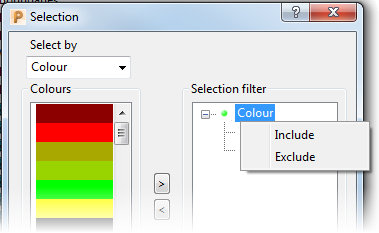

If you right-click Colour in the Selection filter and select Exclude from the context menu:

The components other than DarkOliveGreen and Maroon in colour are selected.

The representation in the Selection filter also changes to have a cross by them, .
