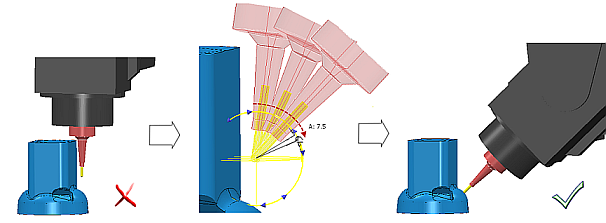

Use the Dynamic Machine Control item to adjust the configuration and tool axis of a 3+2 machine tool. This enables you to quickly and easily improve the machine tool's access to the workpiece.
Click Toolpath Edit tab > Edit panel > Dynamic Machine Control to display the Dynamic Machine Control tab.
Note: Dynamic machine control is available for all tools. All of the dynamic machine control functionality is available when you use the following tools: ball nosed, tip radiused, end mill, tapered spherical and tapered tip. When you use other tools, such as a drill or barrel tool, the functionality is limited.

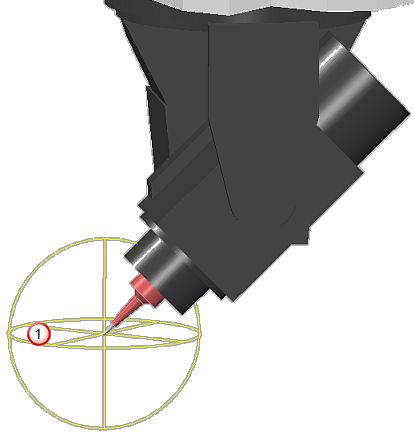

Entering the dynamic machine control mode displays grab-handles around the tool
and the Dynamic Machine Control tab.
