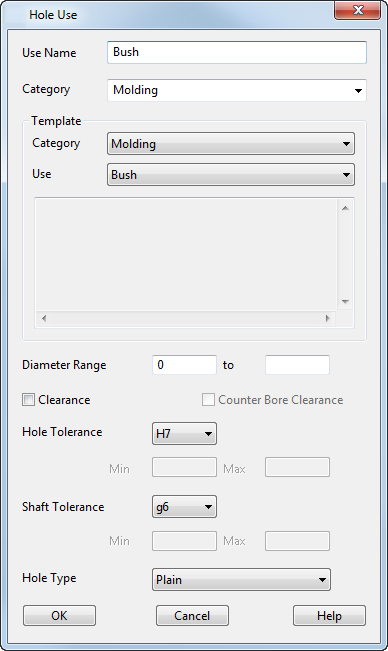

This dialog is used to create and edit hole uses. It is displayed by clicking Create on the Holes page of the Options dialog.
- Enter a Name for the hole use. The name must not already exist within the selected category.
- Enter the name of a Category. You can select an existing category or enter in a new name.
- Define the Template using the Category and Use drop-down lists to select a hole use. This hole use is used specifies the values (mainly the tolerances) for the rest of the dialog.
- Change the settings on the remaining options to define the new hole use.
