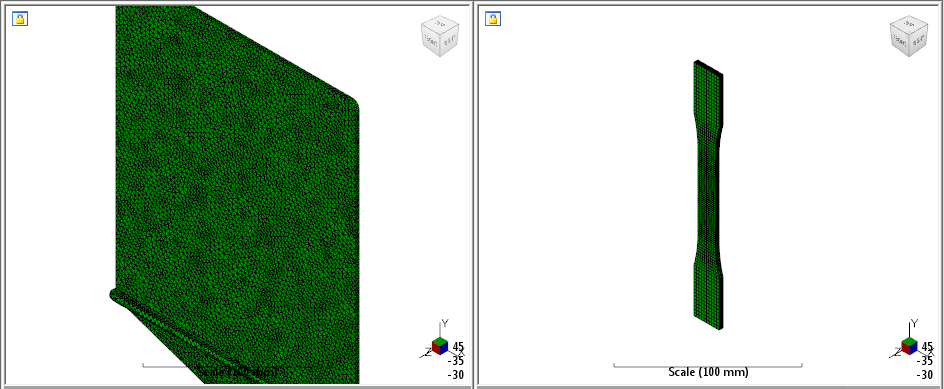

In the following tutorial we'll examine an ASTM coupon specimen, machined from an injection-molded plaque. The plaque is made from Extron 3019 HS, a 30% glass fiber filled material. We'll map the fiber orientations from the plaque to the test coupon and perform our structural analysis.
