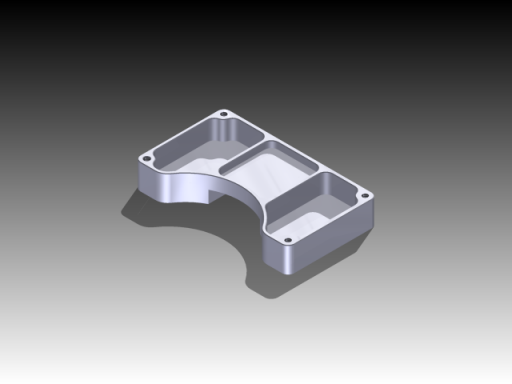

In this tutorial, you will continue to practice the skills you learned in Tutorial 1 and Tutorial 2 to machine the part shown above using the following operations:
- Creating a Setup
- Facing
- 2D Adaptive Clearing
- 2D Pocketing
- 2D Contouring
- Chamfering
- Countersinking
- Drilling
- Tapping
- Simulating and Post Processing the toolpaths
Before proceeding, please open the part CAM Mania Tutorial.ipt in Autodesk HSM.
Note: The files used in these tutorials, as well as other sample datasets, can be found in the
C:\Users\Public\Documents\Autodesk\Inventor HSM 2019\Examples subfolder.
