Browser Enhancements

Save time with the exciting new browser tools.

Search

• Find things quickly and easily in the current active document with the new browser search.
  • File nodes, both collapsed and expanded.
  • iProperties: An icon displays next to search results with matching iProperty fields. Hover over the icon to display the information.
  • Relationships (not available in Inventor LT).
  • Features.
• Click to display the search field. The quick search field searches as you type.



• In an assembly file, use the filter tools to narrow your search (not available in Inventor LT).
  • Clear the filter.
  • Filter out unresolved files.
  • Filter out out-of-date files.

Additional Browser Enhancements

• The Model panel displays by default. Select to select to display a browser panel. Click the x to remove a panel.

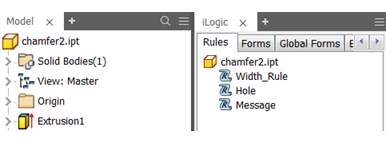

• Each tab can be moved and docked. Below is an example side by side docking.

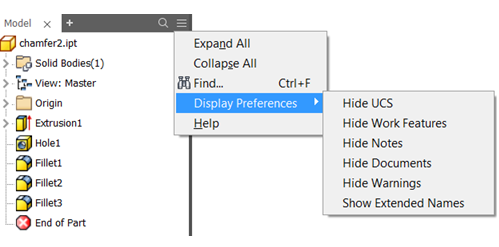

• New Browser menus: Select to access display options and Help:



  • In an assembly and presentation file, you can select the new browser menu option, Edit Values in Browser, to enable or disable the browser edit box (not available in Inventor LT).



    Note: The browser edit box displays when selecting a constraint in an assembly browser or a tweak in a presentation browser. The edit box now displays near the selected item instead of at the bottom of the browser.



• You can now easily switch between model, assembly, and other environment browsers with a single click. For example, when the Inventor Studio environment is active, you can now simply click to switch between the Inventor Studio browser and the Modeling browser.
