Use the TwoPlots command to add two different result plots to your report.
The format for the TwoPlots command is:
TwoPlots, <Plot Name>, <Orientation>, <Plot Name2>, <Orientation2>, or
TwoPlots, <ResultID>, <Orientation>, <Plot Name2>, <Orientation2>,
where <Orientation2> is an optional argument. If you use a saved view that you have created yourself, include quotation marks around the orientation argument.
Inputs for the Orientation arguments include:
- Left
- Right
- Top
- Bottom
- Front
- Back
- Frontleft
- Frontright
- Backleft
- Backright
- Isometric
- <Saved View>
- Current
For example:

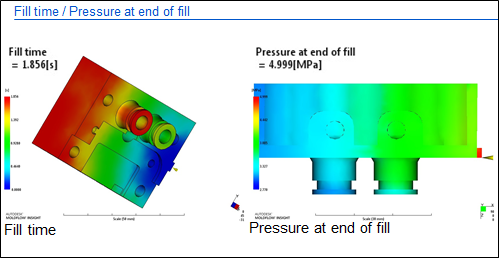

- TwoPlots, "Fill time", Top, "Pressure at end of fill", FRONT
- TwoPlots, "Fill time", , "Pressure", FRONT
- TwoPlots, "Fill time", , "Pressure"
- TwoPlots, 1540, , "Pressure"
