FourPlots

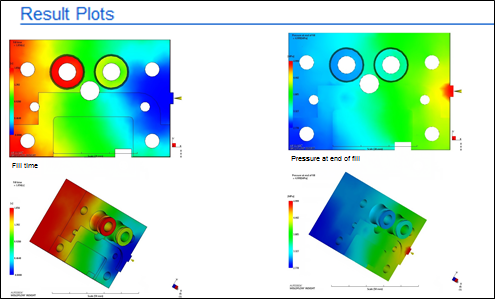

Use the FourPlots command to add four different results plots to your report.

The format for the FourPlots command is:

FourPlots, <Plot Name>, <Orientation>, <Plot Name2>, <Orientation2>, <Plot Name3>, <Orientation3>, <Plot Name4>, <Orientation4>,

FourPlots, <ResultID>, <Orientation>, <Plot Name2>, <Orientation2>, <Plot Name3>, <Orientation3>, <Plot Name4>, <Orientation4>, etc.

where <Orientation4> is an optional argument. If you use a saved view that you have created yourself, use quotation marks around the orientation argument.

Inputs for the Orientation arguments include:

• Left
• Right
• Top
• Bottom
• Front
• Back
• Frontleft
• Frontright
• Backleft
• Backright
• Isometric
• <Saved View>
• Current

For example:

• FourPlots, "Fill time", TOP, "Pressure", Front, "Weld lines", Front, "Air traps", top
• FOURPLOTS, "Fill time", Front, "Fill time", isometric, "Pressure at end of fill", FRONT, "Pressure at end of fill", Isometric
• FourPlots,1540, TOP, "Pressure", Front, "Weld lines", Front, "Pressure at end of fill", top
