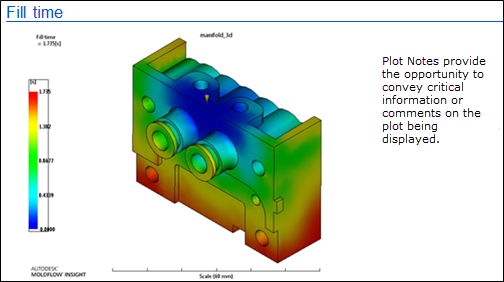

Use the OnePlotwithNotes command to add a single result plot to your report, with its accompanying plot notes.
The format for the OnePlotWithNotes command is:
OnePlotWithNotes, <Plot Name>, <Orientation>, or
OnePlotWithNotes, <ResultID>, <Orientation>,
where <Orientation> is an optional argument. If you use a saved view that you have created yourself, include quotation marks around the orientation argument.
Inputs for the Orientation argument include:
- Left
- Right
- Top
- Bottom
- Front
- Back
- Frontleft
- Frontright
- Backleft
- Backright
- Isometric
- <Saved View>
- Current
For example:
- OnePlotWithNotes, "Pressure at end of fill", Isometric
- OnePlotWithNotes, "Fill Time"
- OneplotWithNotes, 1540, Isometric
