Report mesh information

Use the MeshInformation command to include mesh statistics and a plot of the aspect ratio distribution.

The format for the mesh information command is:

MeshInformation, <Advanced>, where <Advanced> is optional.

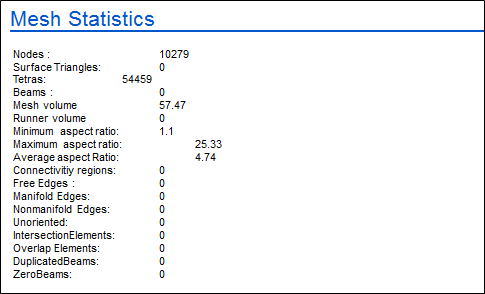

This command reports the mesh statistics. It also plots the aspect ratio, if Advanced is invoked. For example:

• MESHINFORMATION

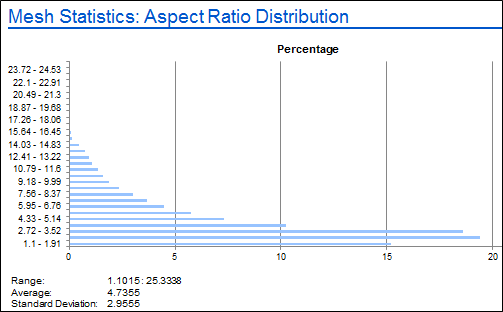

These commands report the aspect ratio distribution, in addition to the mesh statistics:

• MeshInformation, true
• MESHINFORMATION, ADVANCED
