Use the MaterialInformation command to include information about the material being used, such as manufacturer details and recommended processing conditions.
The format for the material information command is:
MaterialInformation, <Advanced>, where the <Advanced> argument is optional.
This command reports manufacturer information, including:
- Manufacturer name
- Trade name
- Family name
- Filler content
- Moldflow Materials database Material ID

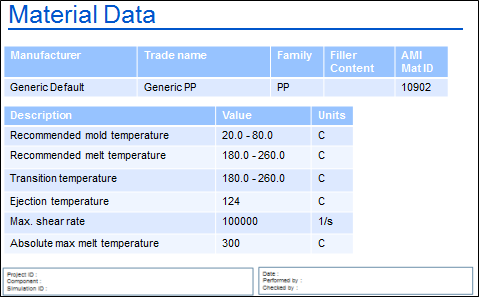

It also reports a variety of recommended processing conditions. For example:
- MATERIALINFORMATION

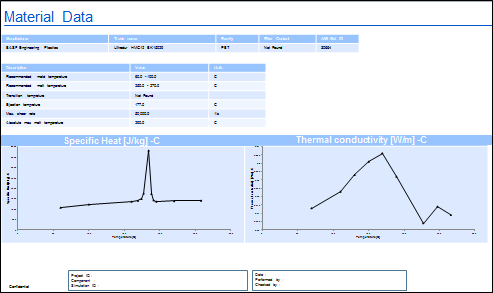

To plot the specific heat and thermal conductivity data, include the Advanced argument:
- MATERIALINFORMATION, ADVANCED
- MaterialInformation, True
