Use the OnePlot command to add a single result plot to your report.
The format for the OnePlot command is:
OnePlot, <Plot Name>, <Orientation>, or
OnePlot, <resultID>, <Orientation>
where <Orientation> is an optional argument. If you use a saved view that you have created yourself, include quotation marks around the orientation argument.
Inputs for the Orientation argument include:
- Left
- Right
- Top
- Bottom
- Front
- Back
- Frontleft
- Frontright
- Backleft
- Backright
- Isometric
- <Saved View>
- Current
For example:

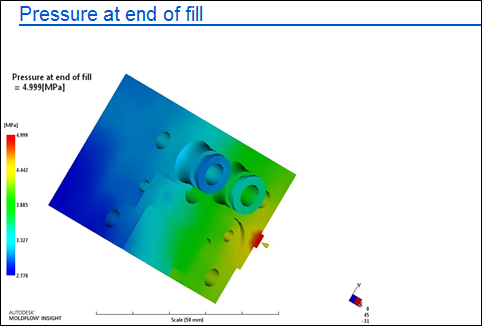

- OnePlot, "Pressure at end of fill", Isometric
- ONEPLOT, "Fill time", TOP
- Oneplot, "Pressure", "Interesting View"
- Oneplot, 1540, Isometric
