OneAnimation

Use the OneAnimation command to include an animation of the result plot in your report.

The format for the OneAnimation command is:

OneAnimation, <Plot Name>, <Orientation>, or

OneAnimation, <ResultID>, <Orientation>,

where <Orientation> is an optional argument. If you use a saved view that you have created yourself, include quotation marks around the orientation arguments.

Inputs for the Orientation argument include:

• Left
• Right
• Top
• Bottom
• Front
• Back
• Frontleft
• Frontright
• Backleft
• Backright
• Isometric
• <Saved View>
• Current

For example:

• OneAnimation, "Fill time"
• ONEANIMATION, "Fill time", FRONT

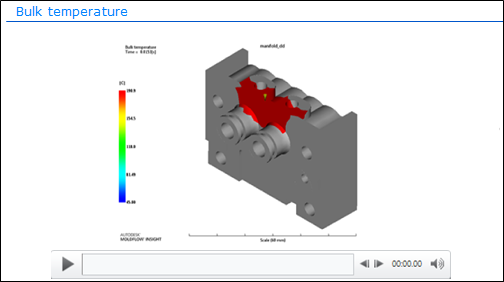

• OneAnimation, "Bulk temperature"
• OneAnimation, 1540
